Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 10,20,50,100kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.015%F.S. Or Customized | Non-linearity: | ≤0.016%F.S. Or Customized |
| Hysteresis: | ≤0.016%F.S. Or Customized | Repeatability: | ≤0.016%F.S. Or Customized |
| High Light: | 20kg Tension Compression Force Sensor,50kg Tension Compression Force Sensor,15v load cell sensor 100kg |
||

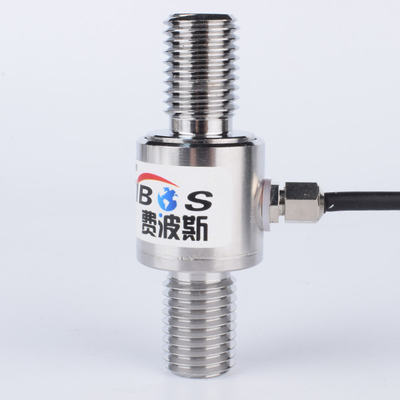

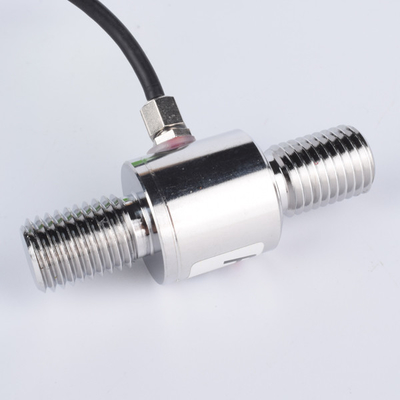

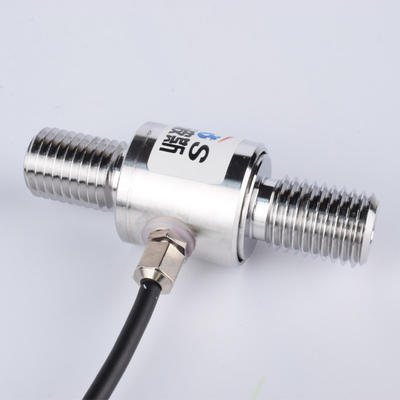

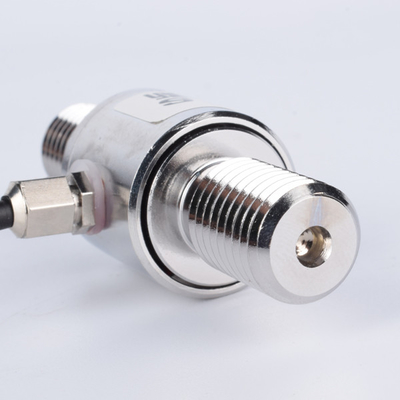

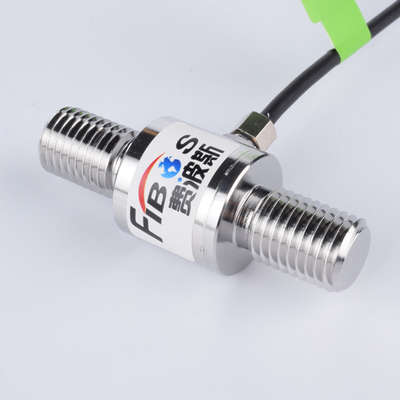

10,20,50,100kg Or Customized Tension Compression Force Sensor
1. Descriptions
10,20,50,100kg Or Customized Tension Compression Force Sensor FA208 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor can be used to measure tension and compression force 10kg,20kg,50kg and 100kg or can be customized, its Creep(30min) ≤0.015%F.S. or can be customized, its Non-linearity,Hysteresis and Repeatability all ≤0.016%F.S. or can also be customized.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 10,20,50,100kg or customized |
| Rated output | 1.5±15%mV/V |
| Zero balance | ±0.05mV/V |
| Creep(30min) | ≤0.015%F.S. or customized |
| Non-linearity | ≤0.016%F.S. or customized |
| Hysteresis | ≤0.016%F.S. or customized |
| Repeatability | ≤0.016%F.S. or customized |
| Input resistance | 800~1100Ω |
| Output resistance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀1.5x2000mm or customized |
| Weight | 0.02kg or customized |
| Material | Alloy Steel or customized |
3. Dimension
Need to be customized
4. Application
10,20,50,100kg Or Customized Tension Compression Force Sensor FA208 can be used for baby scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
