Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 50,100,150,200t Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.08%F.S. Or Customized | Non-linearity: | ≤0.08%F.S. Or Customized |
| Hysteresis: | ≤0.08%F.S. Or Customized | Repeatability: | ≤0.09%F.S. Or Customized |
| High Light: | 50t Spoke Type Load Cell,700 ohm Spoke Type Load Cell,cement batching silos 150 ton load cell |
||

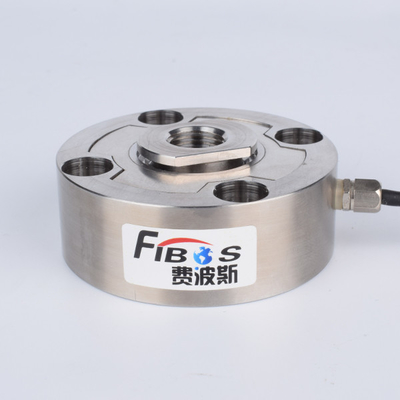

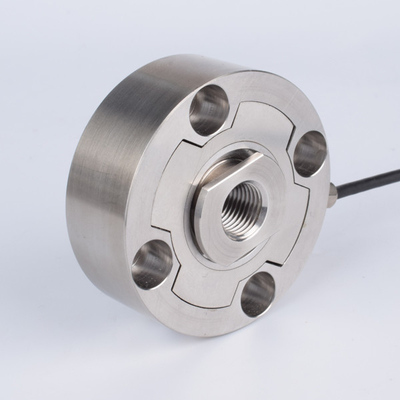

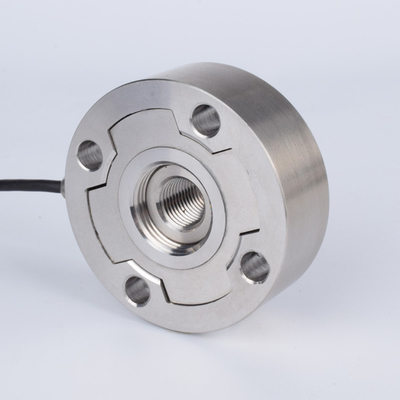

50,100,150,200t or customized Spoke Type Load Cell
1. Descriptions
50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 50,100,150,200t or customized |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.08%F.S. or customized |
| Non-linearity | ≤0.08%F.S. or customized |
| Hysteresis | ≤0.08%F.S. or customized |
| Repeatability | ≤0.09%F.S. or customized |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm or customized |
3. Dimension
Need to be customized
4. Application
50,100,150,200t or customized Spoke Type Load Cell FA120F can be used in cement batching silos.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
