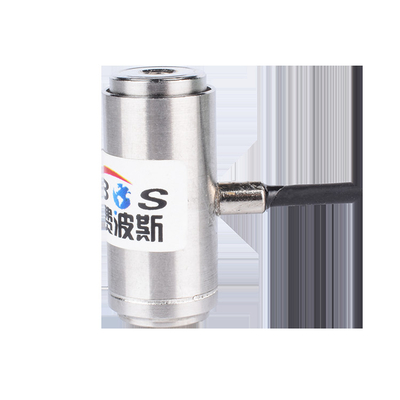

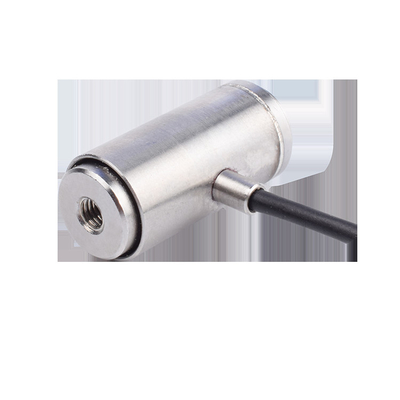

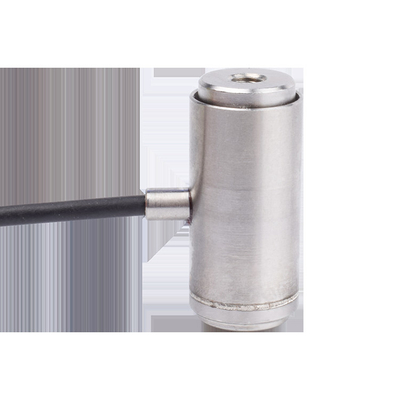

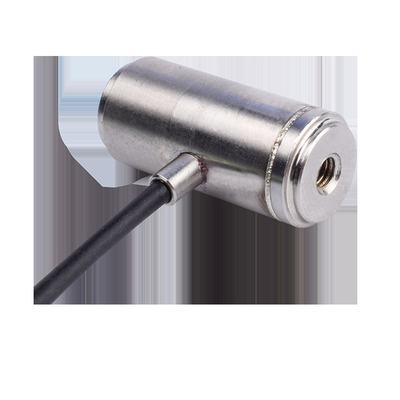

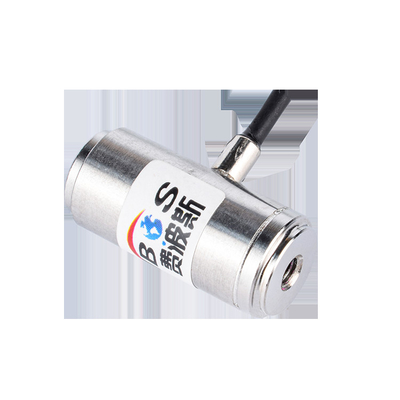

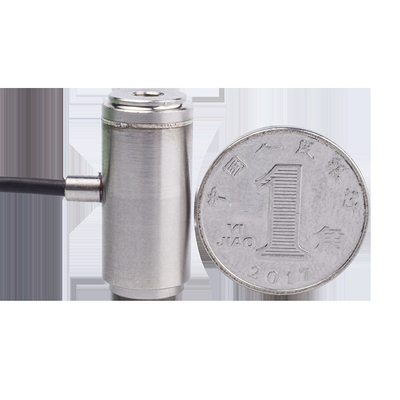

Product Details:
|
| Product Name: | Tensile-compressive Force Sensor | Capacity: | 1, 2, 3, 5, 10, 20kg |
|---|---|---|---|
| Creep(30min): | ≤0.1%F.S. | Material: | Stainless Steel |
| Non-linearity: | ≤0.1%F.S. | Cable Size: | ⌀2*3000mm |
| High Light: | 20kg Mini Force Sensor,Hopper Scales Mini Force Sensor |
||
1. Descriptions
20kg The Creep ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA401 belongs to FA411 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA401 can be used to measure load 20kg capacity, its Creep(30min) ≤0.1%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.1%F.S..
2. Specifications
| Product name | Tensile-compressive force sensor |
| Capacity | 1, 2, 3, 5, 10, 20kg |
| Sensitivity | 2.0±10%mVN |
| Zero Balance | ±0.05%F.S |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350/650±10Ω |
| Output impedance | 350/650±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3m |
| Material | Stainless steel |
3. Dimension
4. Application
20kg The Creep ≤0.1%F.S. Stainless Steel Tensile-compressive force sensor FA401 can be used for Hooper scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
