Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 100N, 200N, 500N, 1000N, 2000N, 5000N |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.2%F.S. | Recommended Excitation: | 5~15V |
| Insulation Resistance: | ≥5000MΩ/100VDC | Maxmum Excitation Voltage: | 20v |
| Compensated Temp Range: | -10~60℃ | Operating Temp Range: | -20~80℃ |
| Temp.effect On Output: | 0.05%F.S./10℃ | Temp.effect On Zero: | 0.05%F.S./10℃ |
| Cable Size: | ⌀3X3000mm Or Customized | Weight: | 0.2kg |
| Material: | Stainless Steel | ||
| High Light: | IP68 Tension Compression Force Sensor,700Ohm Tension Compression Force Sensor |
||

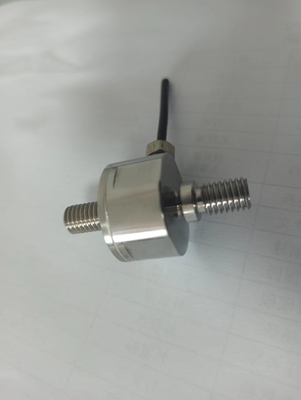

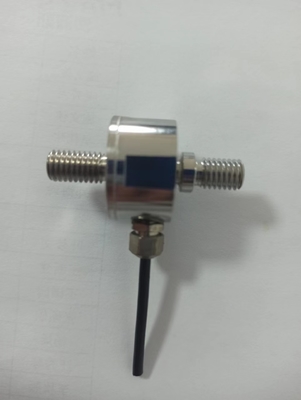

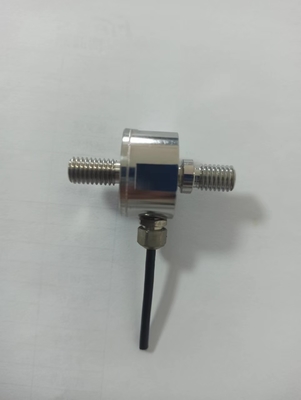

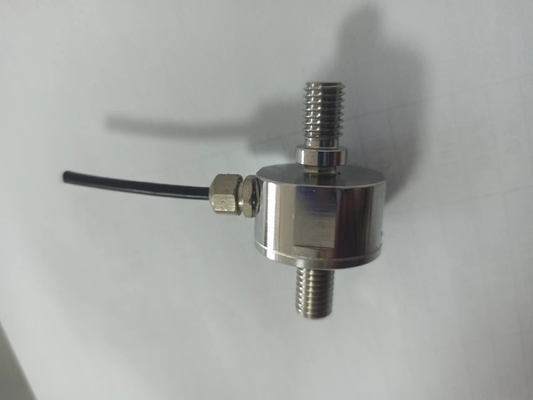

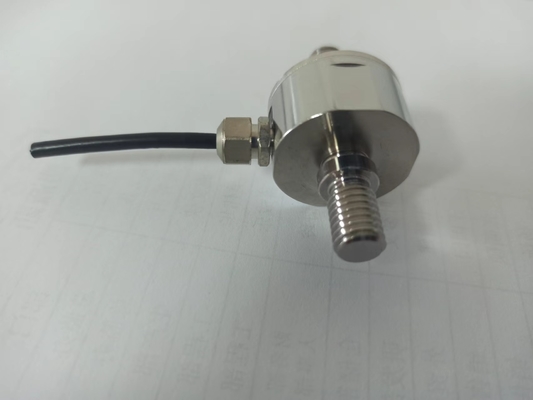

IP68 Stainless Steel Tension Compression Force Sensor 100N-5Kn Load Cell 700 Ohm
1. Descriptions
100-5000N Stainless Steel Tension Compression Force Sensor FA204 is a model of our brand FIBOS FA2-Series load cell, Tension Compression Force Sensor FA204 load cell can be used to measure tension and compression force 100N,200N,500N,1000N,2000N and 5000N capacity, its Zero Balance range is ±0.05mV/V, its Cable size is ⌀3x3000mm.
The advantages of the tension sensor are high precision, wide measurement range, long life, simple structure, good frequency response characteristics, can work under harsh conditions, easy to achieve miniaturization, integration and variety diversification.
Application:
Construction industry: Tension sensor, small lifting equipment integrating electric motor, reducer and wire rope drum, most of them also have a walking trolley, and cooperate with single-girder bridge or gantry crane to form a complete lifting machine. It is a necessary lifting equipment for industrial and mining enterprises, storage terminals and other places.
Sports equipment: The tensile machine in the sports equipment adopts the mechatronic design, which is mainly composed of a tensile force sensor, a transmitter, a microprocessor, a load driving mechanism, a computer and a color inkjet printer.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 100N,200N,500N,1000N, 2000N,5000N |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.5%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.2%F.S. |
| Input impedance | 700±5Ω |
| Output impedance | 700±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.2kg |
| Material | Stainless steel |
3. Dimension
4. Application
100-5000N Stainless Steel Tension Compression Force Sensor FA204 load cell can be used for cable tensile testing.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
