Product Details:
|
| Product Name: | Stainless Steel Donut Load Cell | Capacity: | 100~150T |
|---|---|---|---|
| Material: | Stainless Steel | Creep(30min): | ≤0.1%F.S. |
| Non-linearity: | ≤0.1%F.S. | Cable Size: | ⌀6*5000mm |
| High Light: | 150T Donut Load Cell,SS Donut Load Cell |
||

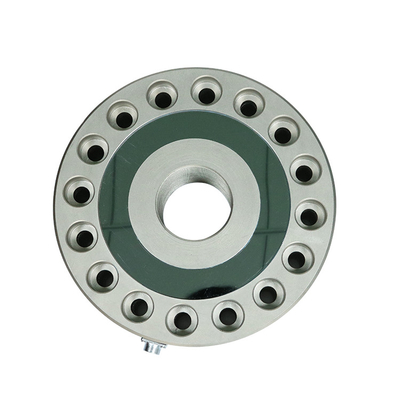

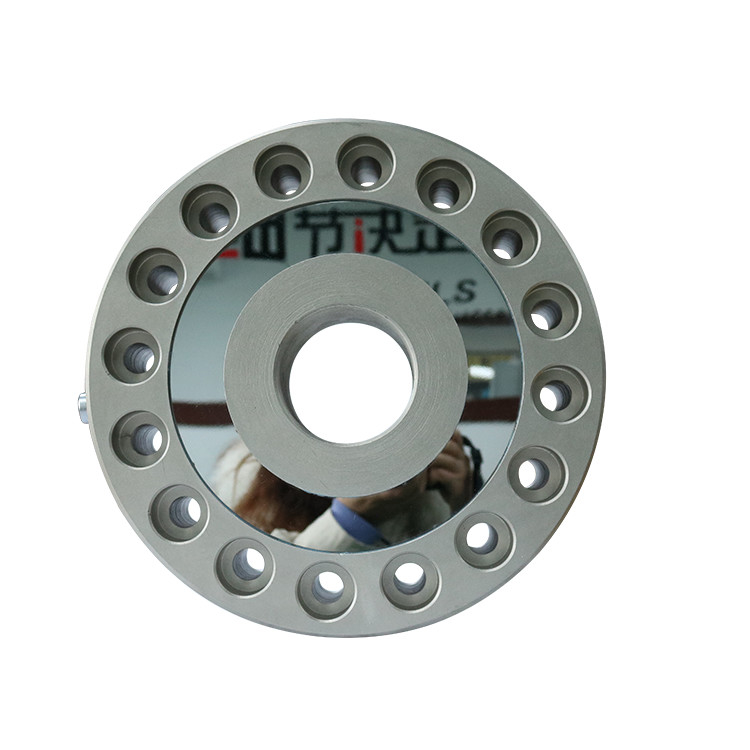

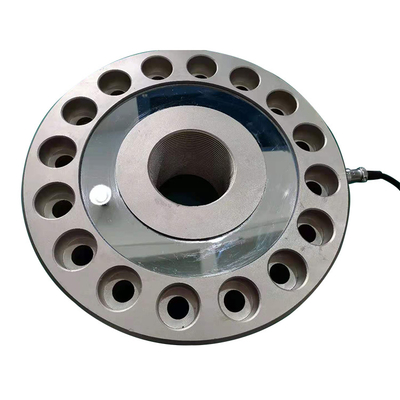

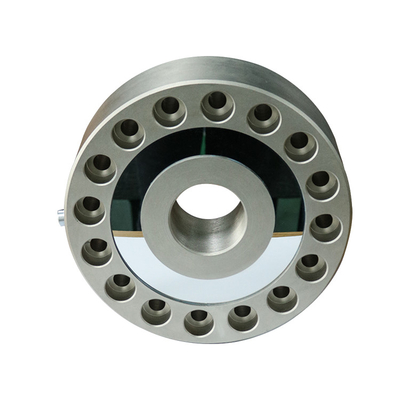

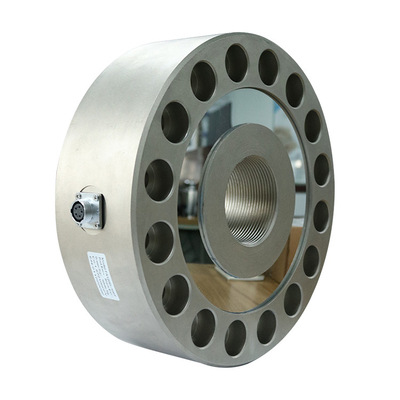

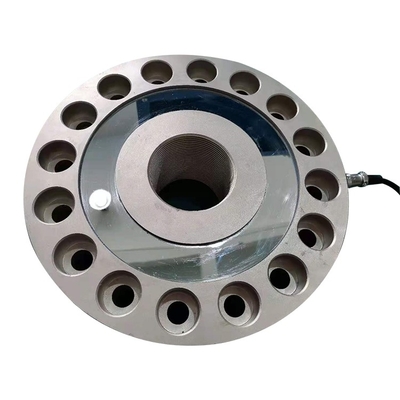

Customized stainless steel 100T 150T donut load cell with CE certification
1. Descriptions
100~150T The Creep ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA120D which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120D can be used to measure load 150T capacity, its Creep(30min) ≤0.1%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.1%F.S..
2. Specifications
| Product name | stainless steel 100T 150T donut load cell |
| Capacity | 100~150T |
| Sensitivity | 2.0±10%mVN |
| Zero Balance | ±0.05%F.S |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350/650±10Ω |
| Output impedance | 350/650±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3m |
| Material | Stainless steel |
3. Dimension
4. Application
100~150T The Creep ≤0.1%F.S. Stainless Steel Tensile-compressive force sensor FA120D can be used for industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
