Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T

Certification
China Fibos Measurement Technology (Changzhou) Co., Ltd. certification
China Fibos Measurement Technology (Changzhou) Co., Ltd. certification
I'm Online Chat Now

Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T

Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T
Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T

Large Image :  Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T

Product Details:
Place of Origin: China
Brand Name: Fibos
Certification: CE,ROHS,ISO9001
Model Number: FA120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 88-1230/PC
Packaging Details: boxes
Delivery Time: 7-14work days
Supply Ability: 1000per month

Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T

Description
Capacity: 0.1,0.2,1,2,3,5,10,15, 20,30,50,70T,100,150,200,250T,300T Rated Out: 2.0±1%mV/V
Accuracy: C3 Material: Alloy Steel
Proof: IP68 Cable: Ф5.4*3m
High Light:

200T Force Load Cell Sensor

,

Alloy Steel Force Load Cell

,

IP68 Spoke Weighing Load Cell

Hot Selling Alloy Steel 1/5/20/50/70/200T Spoke Weighing Pull Pressure Force Load Cell Sensor For Heavy Industry

Features

The spoke load cell is a compression load cell, which is often used for static measurement and dynamic measurement.

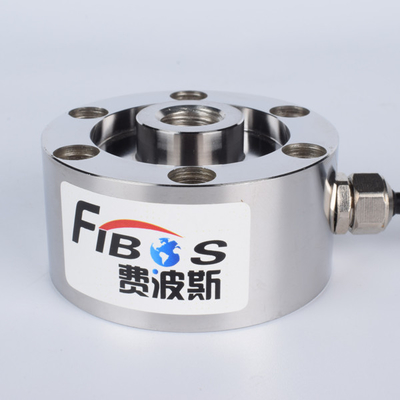

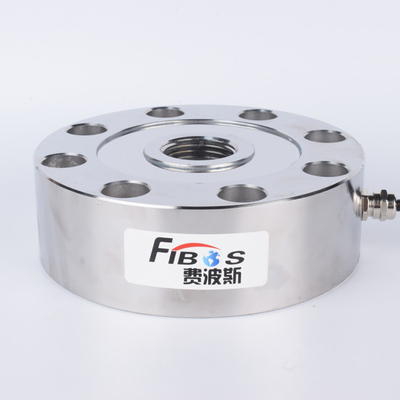

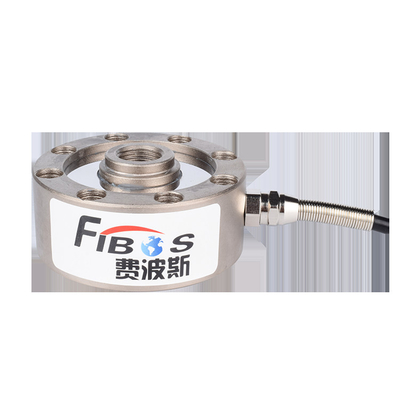

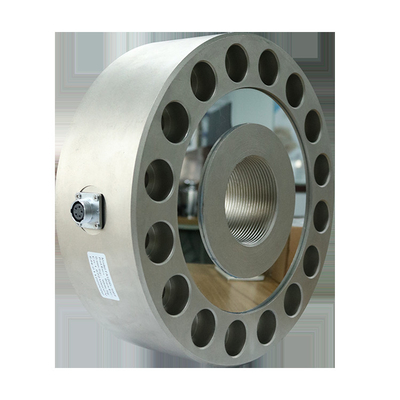

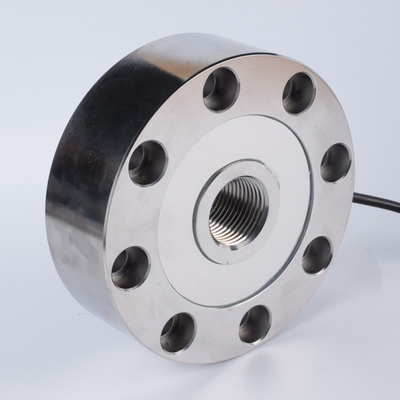

Micro pressure transducer pancake load cell FA120 has a central threaded hole for measuring loads in either tension or compression.The wheel shaped transducer are available in a wide capacity range from 100kg to 300t. The spoke pressure sensor has high endurance and high fatigue life.

  • High comprehensive precision
  • Tension - compression bidirectional
  • Other ranges can be customized

Applications

The purpose of the spoke compression load cell, as the name suggests, is the occasion where the load cell is mainly used for weighing and measuring force. For example, related weighing equipment such as floor scales and platform scales. It is also used for tensile machines, presses, and other force detection equipment.

  • Universal material testing machine
  • injection molding clamping force applications
  • Weighting system for tanks,vessels and hoppers

Mounting Dimension-spoke load cell Weight Sensor

Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T 0Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T 1
Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T 2
Specifications Technique
Capacity 0.1,0.2,1,2,3,5,10,15,20,25,30t
Rated output 2.0±1%mV/V(0.1,0.2kN),3.0±1%mV/V(1~30kN)
Zero balance ±1% F.S.
Non-linearity 0.03%F.S.
Hysteresis 0.03%F.S.
Repeatability 0.03%F.S.
Creep(30min) 0.03%F.S.
Temp.effect on output 0.02%F.S./10℃
Temp.effect on zero 0.02%F.S./10℃
Input impedance 780±10Ω
Output impedance 700±5Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~40℃
Operation temp range -10~70℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size φ5×6000mm


Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T 3

The core team of Fibos has 20 years of experience in the design and production of advanced sensors in Germany. We continuously develop and produce: precision micro and small force sensors, single point load cells, dynamic and static torque sensors, six-dimensional force, three-dimensional force, multi-dimensional force sensors, load cells, custom ring force sensors, thread force sensors, thread preload force sensors, sensors for robots, tension series and various non-standard force sensors, etc. The company produces pressure force sensors: accurate measurement, low height, small deformation, high precision, good stability, fast response, easy installation, long life, complete specifications and sizes, not only for push and pull meters, hopper scales, a variety of industrial weighing systems, automotive press assembly, automated assembly, 3C product testing; also used

in new energy product assembly, medical testing, textiles, robotics, mold assembly, wind energy, nuclear power and ships, etc. The product dynamic response frequency is high, also can accept custom specifications. In the application of high-frequency loud, fatigue strength after the test, life use up to 100 million times, suitable for all kinds of aircraft, automotive testing occasions.

Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T 4
Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T 5
Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T 6
Alloy Steel Spoke Weighing Pull Pressure Force Load Cell Sensor 1 5 20 50 70 200T 7

FAQ

Q1: How can I get the quotation?

Please send your inquiry to us. Click 'Contact Supplier' icon which is on the left-side or write down your requirement at the bottom of this page.

Q2: What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

Q3: Do you have any discount?

Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q4: Can I get samples?

Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q5: How about the quality of the products?

We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q6: When will you arrange the production?

We will arrange the production immediately after receiving your payment.

Q7: Could you provide me the shortest lead time?

We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
