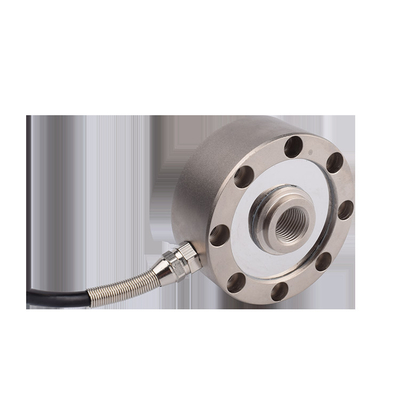

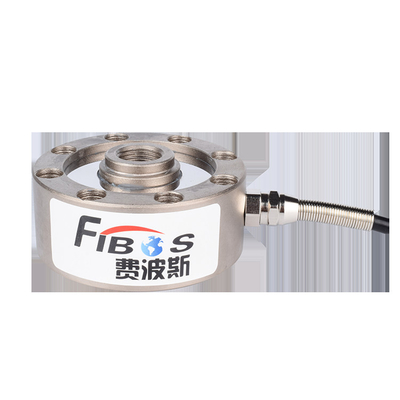

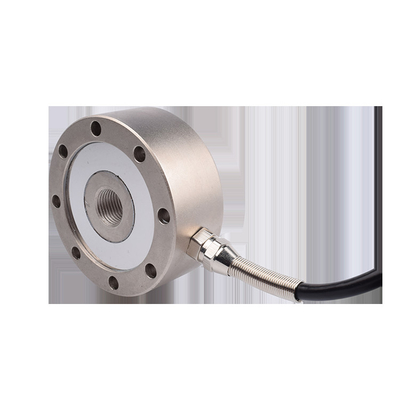

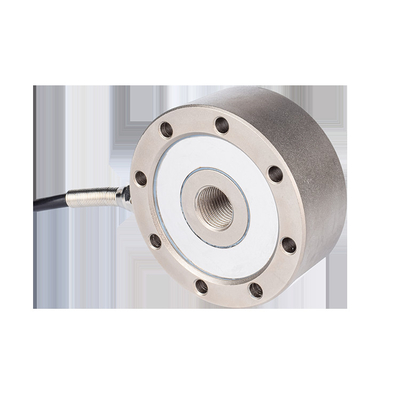

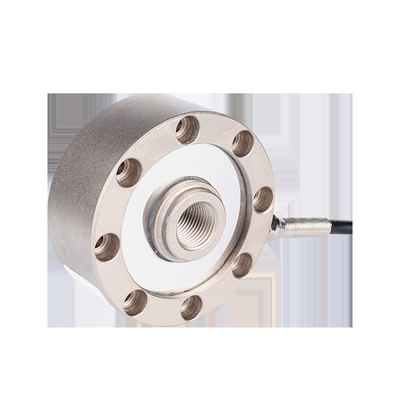

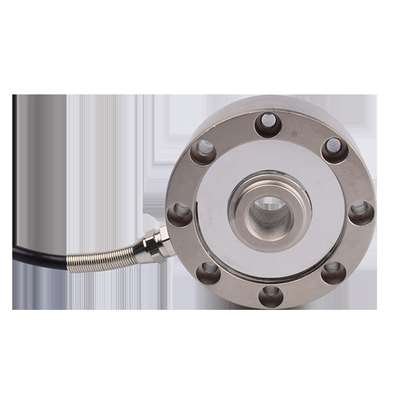

New Products Micro Weight Sensor Force Transducer 20-1000kg Tension Compression Load Cell

New Products Micro Weight Sensor Force Transducer 20-1000kg Tension Compression Load Cell

1. Descriptions

Technical Features:

• High accuracy: compression load cells have high precision and can measure compressive forces with accuracy.
• Robust construction: they are designed to withstand harsh environmental conditions, including high temperatures, moisture, and dust.
• Digital output: many modern compression load cells have digital output, which makes data collection and analysis easier and more accurate.
• Easy to install: most compression load cells can be easily installed using standard mounting techniques.
• Compact size: compression load cells are available in small and compact sizes, making them ideal for use in applications where space is limited.

2. Specifications

3. Dimension

4. Applications:

• Industrial weighing and measurement: compression load cells are widely used in industrial weighing and measurement applications, such as for measuring the weight of containers, tanks, and silos.
• Construction and civil engineering: compression load cells are used in construction and civil engineering to monitor the compressive forces acting on structures, such as bridges and buildings.
• Automotive and aerospace: compression load cells are used in the automotive and aerospace industries for testing and quality control of components and assemblies.
• Medical devices: compression load cells are used in medical devices for measuring forces and pressures, such as in prosthetics and orthopedic implants.

5. Performance Parameters:

• Measuring range: compression load cells are available in various measuring ranges, from a few grams to several tons.
• Accuracy: accuracy is an important performance parameter for compression load cells, with many models capable of measuring forces with an accuracy of 0.1% or better.
• Linearity: linearity refers to how closely the load cell's output corresponds to the applied force. A higher linearity means more accurate measurements.
• Sensitivity: sensitivity is a measure of how much the load cell's output changes in response to an applied force. A higher sensitivity means the load cell can detect smaller changes in force.
• Temperature stability: many compression load cells are designed to be stable over a wide temperature range, ensuring accurate measurements even in extreme environments.
• Environmental protection: depending on the application, compression load cells may require different levels of environmental protection, such as IP ratings, to ensure reliable operation.

6.FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order? We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
