Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity(N): | X:5/10/20/30/50 Y:5/10/20/30/50 Z:5/10/20/30/50 |
|---|---|---|---|
| Interference Error: | ≤0.5%F.S. | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.2%F.S. | Material: | Aluminum Alloy |
| High Light: | 50n 3 Axis Force Sensor,aluminum 3 Axis Force Sensor,0.2% load cell pressure sensor |
||

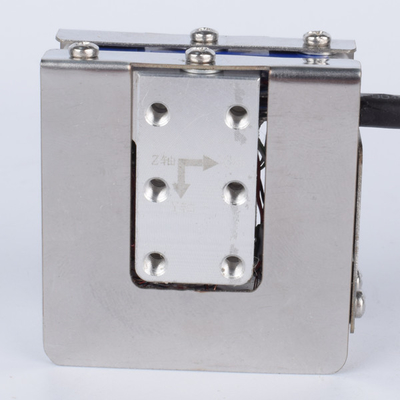

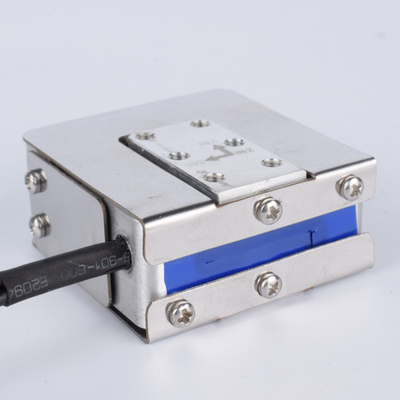

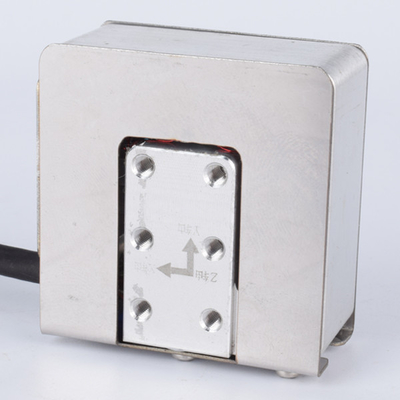

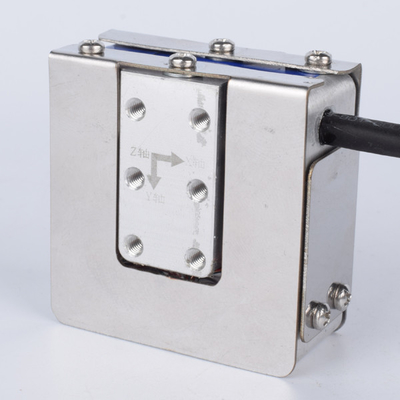

XYZ 5-50N Aluminum Alloy 3 Axis Force Sensor
1. Descriptions
XYZ 5-50N Aluminum Alloy 3 Axis Force Sensor FA702 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA702 can be used to measure 3 axis force, its X aixs, Y axis and Z axis force range are all the same 5N,10N,20N,30N and 50N, its Interference error ≤0.5%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.2%F.S..
2.Specifications
| Product name | 3 Axis Force Sensor |
| Capacity(N) |
X:5/10/20/30/50 Y:5/10/20/30/50 Z:5/10/20/30/50 |
| Rated output | ≈1.0mV/V |
| Zero Balance | ±2%F.S. |
| Interference error | ≤0.5%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.2%F.S. |
| Input impedance | 350±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~75 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm |
| Material | Aluminum alloy |
3. Dimension
4. Application
XYZ 5-50N Aluminum Alloy 3 Axis Force Sensor FA702 could be used for milling and grinding machine processing.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
