Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 300kg |
|---|---|---|---|
| Rated Output: | 2.0±0.2%mV/V | Non-linearity: | ≤0.3%F.S. |
| Material: | Alloy Steel | IP Class: | IP68 |
| High Light: | 300kg Single Point Weight Sensor,IP68 Single Point Weight Sensor,700 ohm force transducer load cell |
||

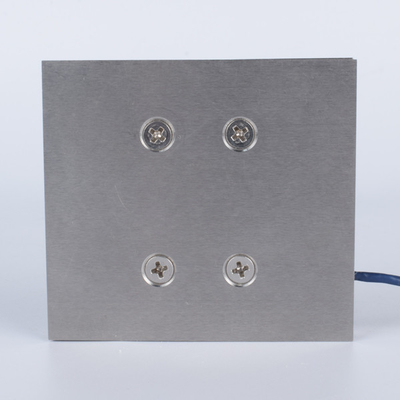

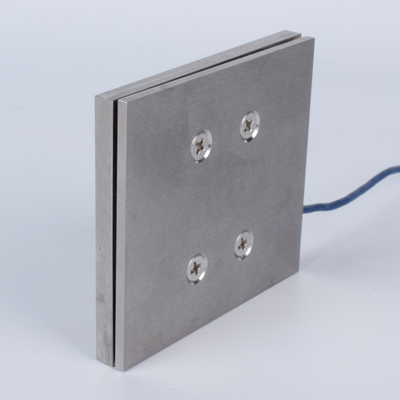

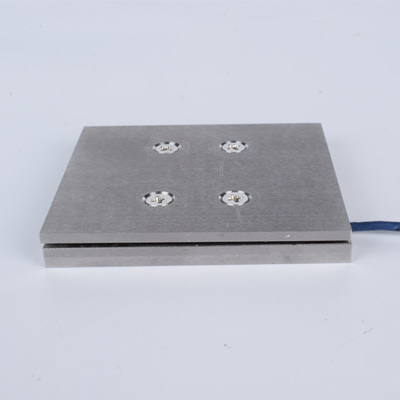

300kg IP68 Alloy Steel Single Point Weight Sensor
1. Descriptions
300kg IP68 Alloy Steel Single Point Weight Sensor FA910 is a model of our brand FIBOS FA9-Series, Single Point Weight Sensor FA910 can be used to measure weight 300kg capacity, its Rated output range is 2.0±0.2%mV/V, its Zero Balance range ≤1%F.S., its Creep(30min),Non-linearity and Hysteresis all ≤0.3%F.S. and its Repeatability ≤0.1%F.S..
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 300kg |
| Rated output | 2.0±0.2%mV/V |
| Zero Balance | ≤1%F.S. |
| Creep(30min) | ≤0.3%F.S. |
| Non-linearity | ≤0.3%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 750±30Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | ≤ 0.05%F.S./10 ℃ |
| Temp.effect on zero | ≤ 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/50V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Material | Alloy steel |
| IP Class | IP68 |
3. Dimension
4. Application
300kg IP68 Alloy Steel Single Point Weight Sensor FA910 could be used for conveyor weighing.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
