Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 50,100,200,500,1000,2000,3000kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.025%F.S. Or Customized | Non-linearity: | ≤0.03%F.S. Or Customized |
| Hysteresis: | ≤0.03%F.S. Or Customized | Repeatability: | ≤0.025%F.S. Or Customized |
| High Light: | 50kg Single Point Weight Sensor,3000kg Single Point Weight Sensor,stainless steel 2000kg load cell |
||

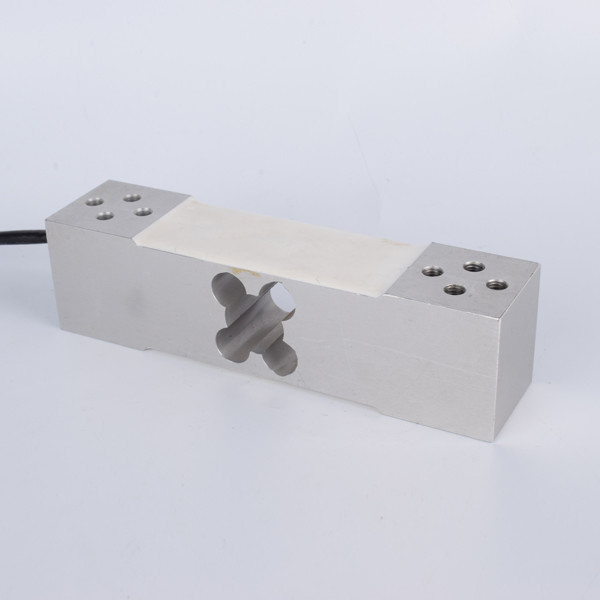

50,100,200,500,1000,2000,3000kg Or Customized Single Point Weight Sensor
1. Descriptions
50,100,200,500,1000,2000,3000kg Or Customized Single Point Weight Sensor FA524A belongs to FA524 which is from Single Point Weight Sensor category of our brand FIBOS FA5-Series. FA524A can be used to measure weight 50kg,100kg,200kg,500kg,1000kg,2000kg and 3000kg or customized capacity, its Cable size is ⌀3x4000mm or can be customized length.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 50,100,200,500,1000,2000,3000kg or customized |
| Rated output | 1.0±20%mV/V or customized |
| Zero balance | ±1.5%F.S. or customized |
| Creep(30min) | ≤0.025%F.S. or customized |
| Non-linearity | ≤0.03%F.S. or customized |
| Hysteresis | ≤0.03%F.S. or customized |
| Repeatability | ≤0.025%F.S. or customized |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀3x4000mm or customized |
| Weight | 0.56kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
50,100,200,500,1000,2000,3000kg Or Customized Single Point Weight Sensor FA524A can be used for electronic bench scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
