Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 5,10,20,50,80,100kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.18%F.S. Or Customized | Non-linearity: | ≤0.2%F.S. Or Customized |
| Hysteresis: | ≤0.2%F.S. Or Customized | Repeatability: | ≤0.18%F.S. Or Customized |
| High Light: | 5kg single ended load cell,100kg single ended load cell,15v sensor for force measurement |
||

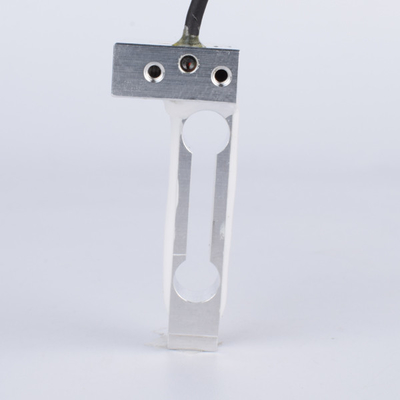

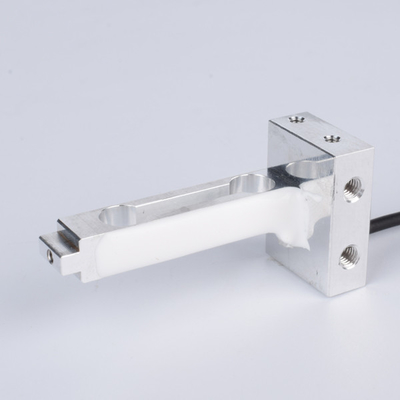

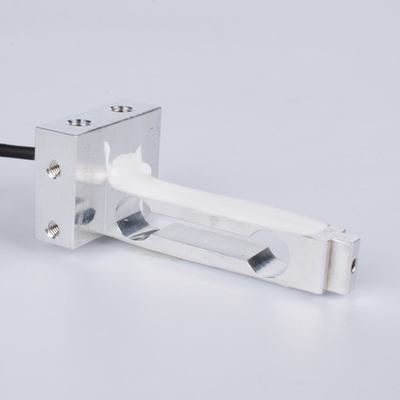

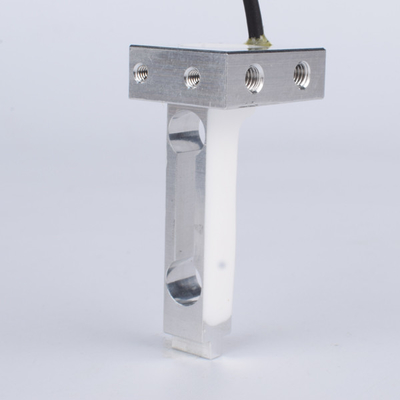

5,10,20,50,80,100kg Or Customized Single Point Weight Sensor
1. Descriptions
5,10,20,50,80,100kg Or Customized Single Point Weight Sensor FA537 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA537 can be used to measure weight ranges from 5kg,10kg,20kg,50kg,80kg up to 100kg or could be customized capacity, its Creep(30min) and Repeatability both ≤0.18%F.S. or could be customized, and its Non-linearity and Hysteresis both ≤0.2%F.S. or customized.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 5,10,20,50,80,100kg or customized |
| Rated output | 1.0±20%mV/V or customized |
| Zero balance | ±0.5%F.S. or customized |
| Creep(30min) | ≤0.18%F.S. or customized |
| Non-linearity | ≤0.2%F.S. or customized |
| Hysteresis | ≤0.2%F.S. or customized |
| Repeatability | ≤0.18%F.S. or customized |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀2x3000mm or customized |
| Weight | 0.02kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
5,10,20,50,80,100kg Or Customized Single Point Weight Sensor FA537 could be used in industrial weighing systems.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
