Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 300,600,1000,3000,6000kg;10,30,60,100,300t Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.05%F.S. Or Customized | Non-linearity: | ≤0.05%F.S. Or Customized |
| Hysteresis: | ≤0.05%F.S. Or Customized | Repeatability: | ≤0.05%F.S. Or Customized |
| High Light: | fibos 300t weight scale sensor,fibos 300t weight scale sensors,300t weight scale sensors fibos |
||
300,600,1000,3000,6000kg;10,30,60,100,300t Or Customized Single Point Weight Sensor
1. Descriptions

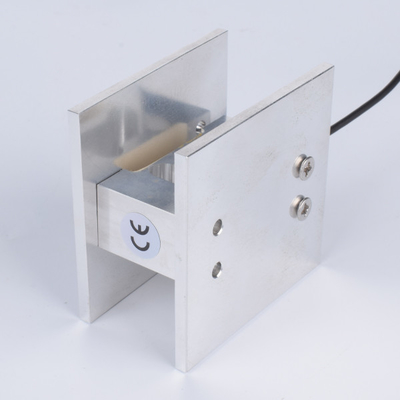

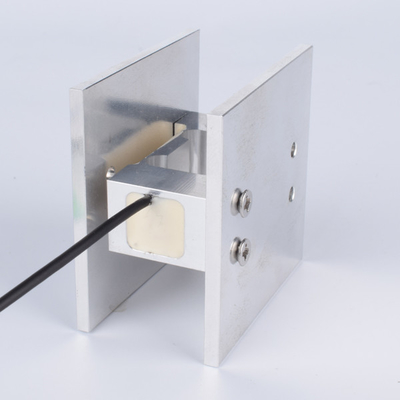

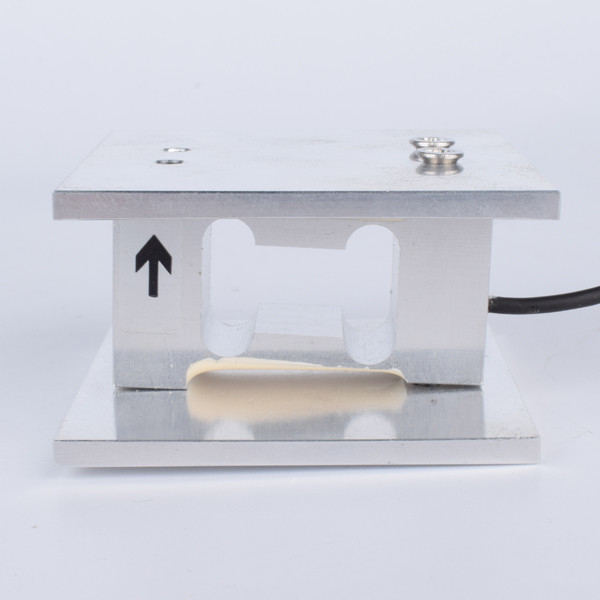

300,600,1000,3000,6000kg;10,30,60,100,300t Or Customized Single Point Weight Sensor FA518 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA518 can be used to measure weight 300kg,600kg,1000kg,3000kg,6000kg and 10t,30t,60t,100t,300t or customized capacity, its material we use Alloy steel or other customized material.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 300,600,1000,3000,6000kg;10,30,60,100,300t or customized |
| Rated output | 1.0±20%mV/V or customized |
| Zero balance | ±1.5%F.S. or customized |
| Creep(30min) | ≤0.05%F.S. or customized |
| Non-linearity | ≤0.05%F.S. or customized |
| Hysteresis | ≤0.05%F.S. or customized |
| Repeatability | ≤0.05%F.S. or customized |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀6x4000mm or customized |
| Weight | 1.12kg or customized |
| Material | Alloy steel or customized |
3. Dimension
Need to be customized
4. Application
300,600,1000,3000,6000kg;10,30,60,100,300t Or Customized Single Point Weight Sensor FA518 can be used for weighing in industrial automation measurement control systems.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
