Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 100,200,500kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.2%F.S. Or Customized | Non-linearity: | ≤0.2%F.S. Or Customized |
| Hysteresis: | ≤0.3%F.S. Or Customized | Repeatability: | ≤0.2%F.S. Or Customized |
| High Light: | 10v Single Point Weight Sensor,100kg Single Point Weight Sensor,800 ohms 500kg load cell |
||

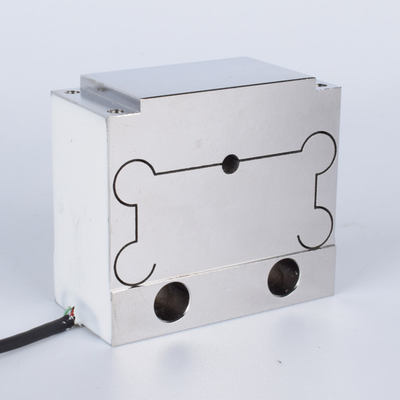

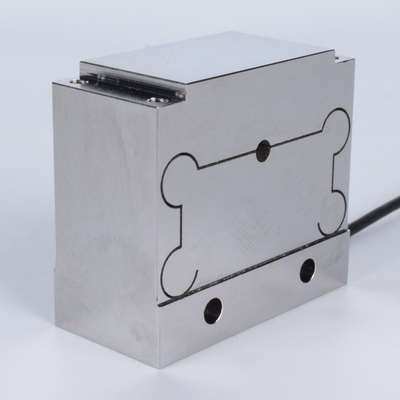

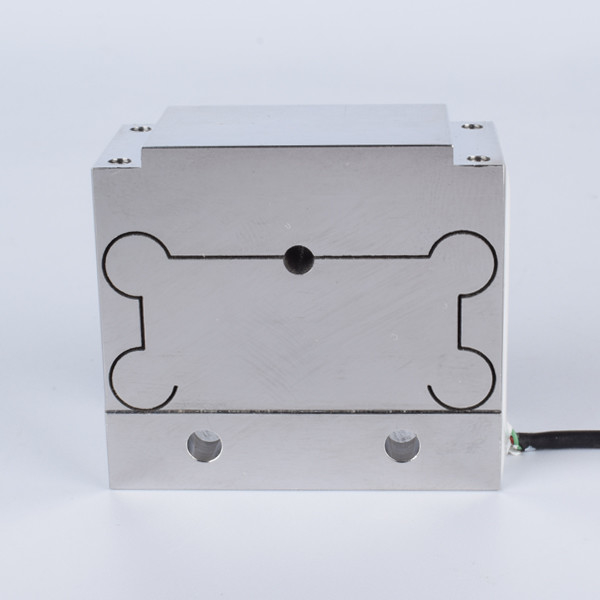

100,200,500kg Or Customized Single Point Weight Sensor
1. Descriptions
100,200,500kg Or Customized Single Point Weight Sensor FA559 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category. FA559 can be used to measure 100kg,200kg and 500kg or customized capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.2%F.S. or can be customized, its Hysteresis ≤0.3%F.S. or also can be customized.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 100,200,500kg or customized |
| Rated output | 1.0±20%mV/V or customized |
| Zero balance | ±1%F.S. or customized |
| Creep(30min) | ≤0.2%F.S. or customized |
| Non-linearity | ≤0.2%F.S. or customized |
| Hysteresis | ≤0.3%F.S. or customized |
| Repeatability | ≤0.2%F.S. or customized |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀2x3000mm or customized |
| Weight | 0.02kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
100,200,500kg Or Customized Single Point Weight Sensor FA559 could be used for electronic balances.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
