Product Details:
|
| Product Name: | Load Cell Amplifier | Readability: | 1/90000 |
|---|---|---|---|
| Comprehensive Accuracy: | <0.01%F.S. | A/D Conversion Speed: | ≤1600 Times/sec |
| Accept Sensitivity: | -3.6~+3.6 M V/V | Input Load: | Up To 8 Units Of 350Ω Sensors Can Be Connected |
| Material: | Aluminum Alloy | IP Class: | IP65 |
| High Light: | 350 ohms weight sensor amplifier,5v weight sensor amplifier,ip65 strain gauge amplifier module |
||
Input Load 8 * 350Ω Sensors <0.01%F.S. IP65 Aluminum Alloy Weight Sensor Instrument Load Cell Amplifier
1. Descriptions
Input Load 8 * 350Ω Sensors <0.01%F.S. IP65 Aluminum Alloy Weight Sensor Instrument Load Cell Amplifier FA05 is a model of our brand FIBOS Amplifier&instrument series, it's Dual-row LED display, A/D Conversion speed ≤1600 Times/sec, its Comprehensive accuracy <0.01%F.S., its Output linear <0.002%, its Readability is 1/90000.
2. Specifications
| Product name | Load Cell Amplifier |

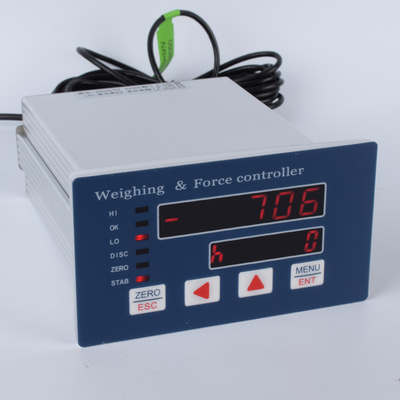

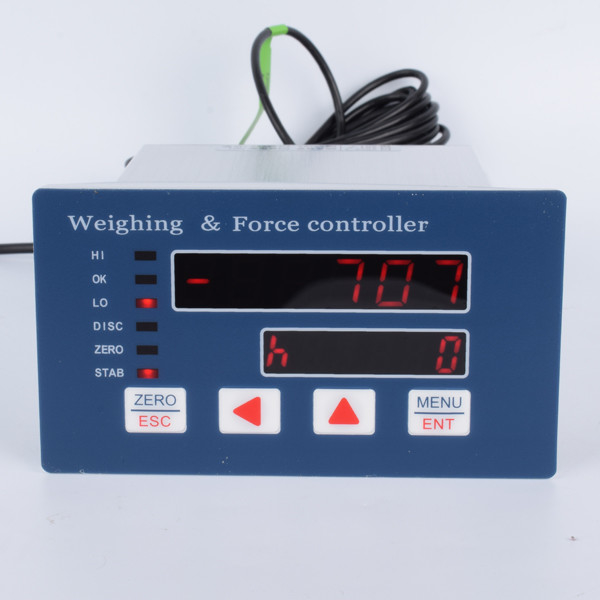

| Display | Dual-row LED display |
| Readability | 1/90000 |
| Output linear | <0.002% |
| Comprehensive accuracy | <0.01%F.S. |
| A/D Conversion speed | ≤1600 Times/sec |
| Accept sensor | -3.6~+3.6 mV/V |
| Input load | Up to 8 units of 350Ω sensors can be connected |
| Output specification | ±10V / 0~10V / 4~20mA |
| Temp.effect on output | ≤10ppm / ℃ |
| Temp.effect on zero | ≤10μV / ℃ |
| Excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤8W |
| Operation temp range | -20～70 ℃ |
| Weight approx. | 0.5kg |
| Material | Aluminum alloy |
| IP Class | IP65 |
3. Dimension
4. Application
Input Load 8 * 350Ω Sensors <0.01%F.S. IP65 Aluminum Alloy Weight Sensor Instrument Load Cell Amplifier FA05 can be used to display values for load cells used in medical engineering applications.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
