Product Details:
|
| Product Name: | Load Cell Amplifier | Display: | Dual-row 6-digit LED Display |
|---|---|---|---|
| Display Accuracy: | 1/30000 | Input Load: | Up To 6 Units Of 350Ω Sensors Can Be Connected |
| IP Class: | IP65 | Output Rate: | 6.25,12.5,25,50,100,200,400,800,1600,3200 Times/sec |
| Baud Rate: | 1200,2400,4800,9600,19200,38400,57600,115200 | Resolution: | 1/60000 |
| High Light: | ip65 Load Cell Amplifier,6 channel Load Cell Amplifier,350 ohm programmable weighing controller |
||
The Resolution 1/60000 Input Load 6 * 350Ω Sensors IP65 Weighing & Force Controller Instrument Load Cell Amplifier
1. Descriptions

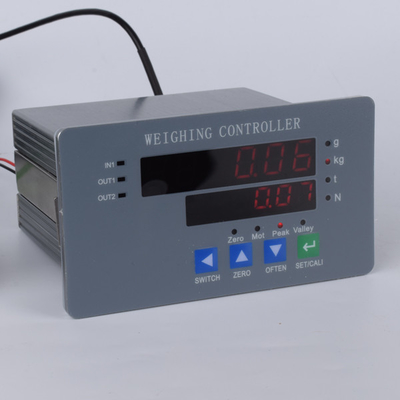

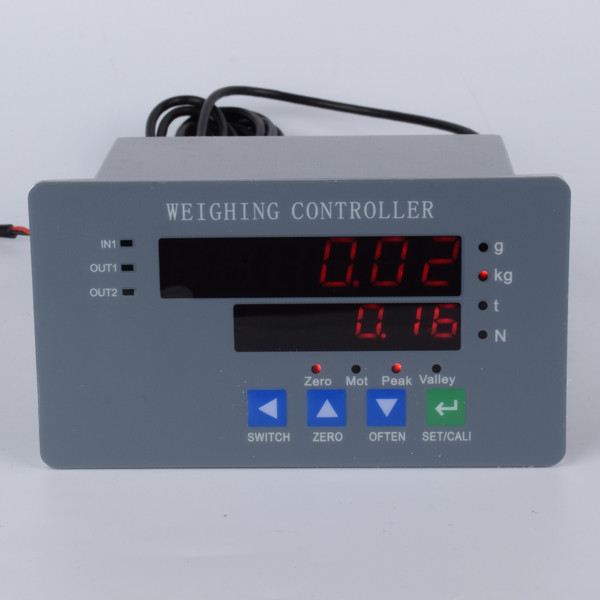

The Resolution 1/60000 Input Load 6 * 350Ω Sensors IP65 Weighing & Force Controller Instrument Load Cell Amplifier FA04B is a model belongs to FA04 which is in our brand FIBOS Weighing & Force Controller Instrument Load Cell Amplifier series, Load Cell Amplifier FA04B has a Dual-row 6-digit LED display, its Display accuracy is 0.003%F.S..
2. Specifications
| Product name | Load Cell Amplifier |
| Output specifications | 0.1~6mV/v |
| Display | Dual-row 6-digit LED display |
| Display accuracy | 0.003%F.S. |
| Sensor excitation voltage | 5VDC±2%,100mA() |
| Input load | Up to 6 units of 350Ω sensors can be connected |
| Power supply | DC:12~30V |
| Operation temp range | -30~60℃ |
| IP Class | IP65 |
| A/D performance | 24-bit, Delta-Sigma method |
| Output rate | 6.25,12.5,25,50,100,200,400,800,1600,3200 Times/sec |
| Baud rate | 1200,2400,4800,9600,19200,38400,57600,115200 |
| Withstand voltage | 1 minute at 2000V AC50/60Hz |
| Surrounding environment | Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| Protocol type | Modbus RTU, ASCII and Free Protocol |
| Communication output | RS485 |
| Analog output | 0~±10V,0~20mA,4~20mA |
| Resolution | 1/60000 |
3. Dimension
4. Application
The Resolution 1/60000 Input Load 6 * 350Ω Sensors IP65 Weighing & Force Controller Instrument Load Cell Amplifier FA04B can be applied to display values from force torque sensor.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
