Product Details:
|
| Product Name: | Load Cell Amplifier | Output Specifications: | 0.4~6mV/V |
|---|---|---|---|
| Display: | Single-row 6-digit Single-row 5-digit Display Or Customized | Display Accuracy: | 0.005%F.S. Or Customized |
| Input Load: | Up To 4 Units Of 350Ω Sensors Can Be Connected Or Customized | IP Class: | IP64 |
| High Light: | 6 mv v Load Cell Amplifier,IP64 Load Cell Amplifier,350 ohm pressure sensor amplifier |
||

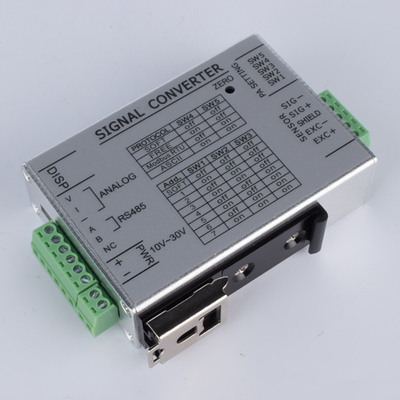

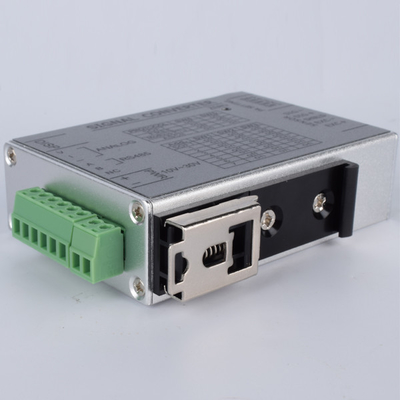

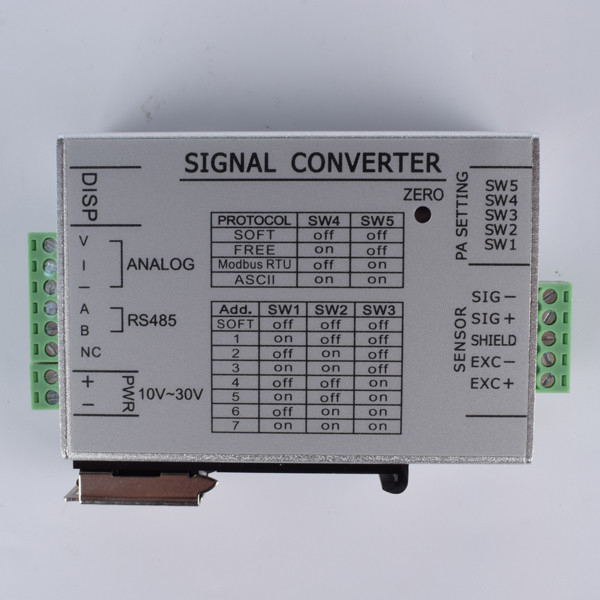

Single-Row 6-Digit Single-Row 5-Digit Display Load Cell Amplifier
1. Descriptions
Single-Row 6-Digit Single-Row 5-Digit Display Load Cell Amplifier FA11B is a model of our brand FIBOS Amplifier and instrument series, Load Cell Amplifier FA11B has Single-row 6-digit Single-row 5-digit Display or could be customized, its Display accuracy is 0.005%F.S. or can be customized, it can be connected to 4 units of 350Ω sensors or also could be customized.
2. Specifications
| Product name | Load Cell Amplifier |
| Output specifications | 0.4~6mV/V |
| Display | Single-row 6-digit Single-row 5-digit Display or customized |
| Display accuracy | 0.005%F.S. or customized |
| Sensor excitation voltage | 5VDC±1%,100mA |
| Input load | Up to 4 units of 350Ω sensors can be connected or customized |
| Power supply | DC:10~30V |
| Acquisition frequency | ≥100-3000HZ |
| Operation temp range | -30~60℃ |
| IP Class | IP64 |
| Material | Aluminum alloy or customized |
| A/D performance | 24-bit,Delta-Sigma method |
| Output rate | 10,40,640,1280 Times/sec |
| Interface | RS485+RS232/ RS485+AnalogOutput(0~±10V/0~±5V/0~20mA/ 4~20mA)(Output method can choose RS232+RS485 or RS485+analog output.) |
| Withstand voltage | 1 minute at 2000V AC50/60Hz |
| Surrounding environment |
Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| Analog output | 0~±10V,0~20mA,4~20mA |
| Resolution | 1/8000 or customized |
3. Dimension
4. Application
Single-Row 6-Digit Single-Row 5-Digit Display Load Cell Amplifier FA11B can be used for the accurate display of values for load cells used in silo applications.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
