Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 3,5,7.5,15,20,30,50,75,100,150,200kg |
|---|---|---|---|
| Creep(30min): | ≤0.017%F.S. | Non-linearity: | ≤0.0166%F.S. |
| Repeatability: | ≤0.015%F.S. | Material: | Aluminum Alloy |
| Highlight: | 3kg Single Point Weight Sensor,0.015% Single Point Weight Sensor,200kg aluminium alloy load cell |
||

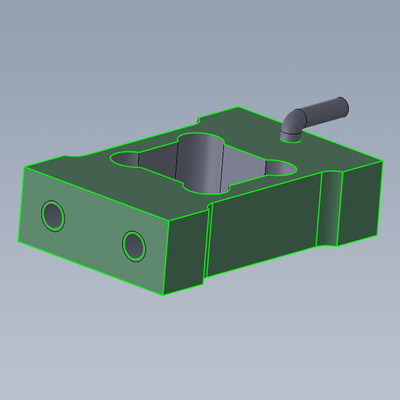

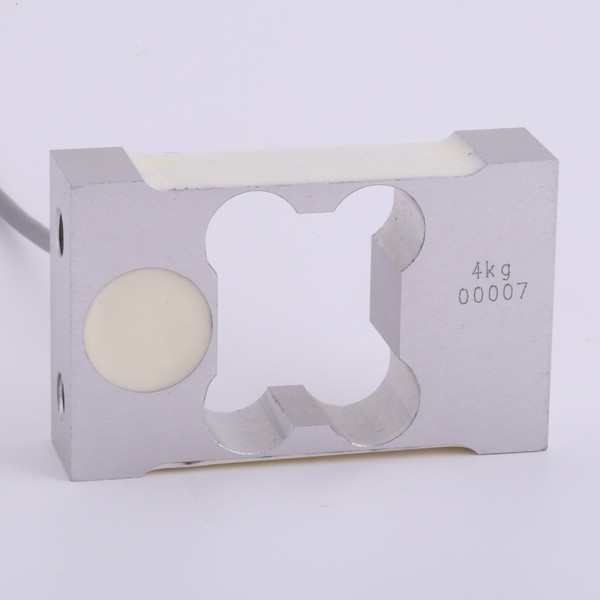

3kg 5kg 7.5kg 15kg 20kg 30kg 50kg 75kg 100kg 150kg 200kg Aluminum Alloy Single Point Weight Sensor
1. Descriptions
3kg 5kg 7.5kg 15kg 20kg 30kg 50kg 75kg 100kg 150kg 200kg Aluminum Alloy Single Point Weight Sensor FA505 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA505 can be used to measure weight 3kg,5kg,7kg.5kg,15kg,20kg,30kg,50kg,75kg,100kg,150kg and 200kg capacity, its Creep(30min) ≤0.017%F.S., its Non-linearity and Hysteresis both ≤0.0166%F.S., and its Repeatability ≤0.015%F.S..
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 3,5,7.5,15,20,30,50,75,100,150,200kg |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.017%F.S. |
| Non-linearity | ≤0.0166%F.S. |
| Hysteresis | ≤0.0166%F.S. |
| Repeatability | ≤0.015%F.S. |
| Input impedance | 420±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.017%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~50 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.2x1600mm |
| Weight | 0.2kg |
| Material | Aluminum alloy |
| Max.platform size | 600mmX500mm |

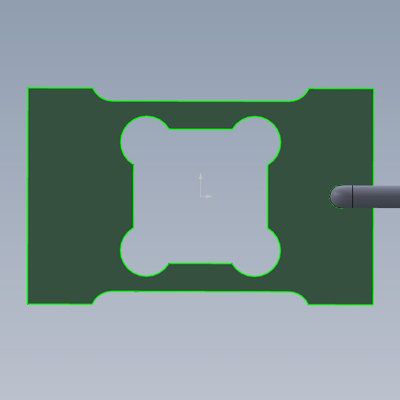

3. Dimension
4. Application
3kg 5kg 7.5kg 15kg 20kg 30kg 50kg 75kg 100kg 150kg 200kg Aluminum Alloy Single Point Weight Sensor FA505 can be used for commercial electronic price scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
