Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 5,10,20,50,100,200,500,1000,2000,5000N Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.03%F.S. Or Customized | Non-linearity: | ≤0.05%F.S. Or Customized |
| Hysteresis: | ≤0.03%F.S. Or Customized | Repeatability: | ≤0.03%F.S. Or Customized |
| High Light: | 0.03% s type load cell,5000n s type load cell,350 ohms 500n load cell |
||
5,10,20,50,100,200,500,1000,2000,5000N Or Customized S Beam Load Cell
1. Descriptions

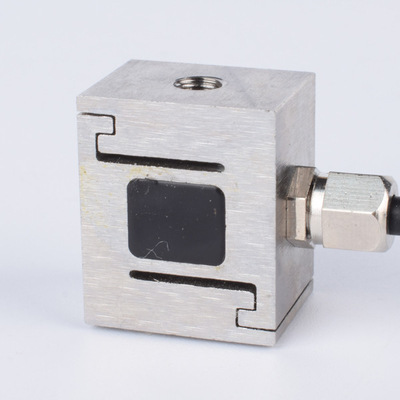

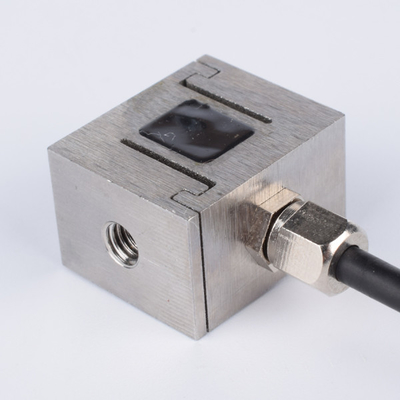

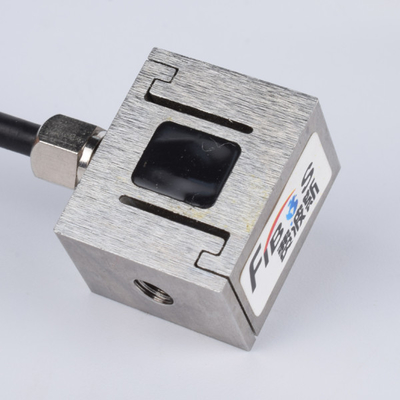

5,10,20,50,100,200,500,1000,2000,5000N Or Customized S Beam Load Cell FA302B is a model of our brand FIBOS FA3-Series, it belongs to FA302 which is in S Beam Load Cell category, FA302B can be used to measure load 5N,10N,20N,50N,100N,200N,500N,1000N,2000N and 5000N or customized capacity, its Weight is 0.1kg or can be customized.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 5,10,20,50,100,200,500,1000,2000,5000N or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.03%F.S. or customized |
| Non-linearity | ≤0.05%F.S. or customized |
| Hysteresis | ≤0.03%F.S. or customized |
| Repeatability | ≤0.03%F.S. or customized |
| Input impedance | 650/350±5Ω |
| Output impedance | 650/350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm or customized |
| Weight | 0.1kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
5,10,20,50,100,200,500,1000,2000,5000N Or Customized S Beam Load Cell FA302B can be used for automotive component mounting test.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
