Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 100,300,500,1000,3000,5000,10000kg Or Customized |
|---|---|---|---|
| Non-linearity: | ≤0.018%F.S. Or Customized | Hysteresis: | ≤0.018%F.S. Or Customized |
| Repeatability: | ≤0.024%F.S. Or Customized | Temp.effect On Output: | 0.014%F.S./10 ℃ |
| Highlight: | 2mv v S Beam Load Cell,350 ohm S Beam Load Cell,10000kg strain gauge force transducer |
||

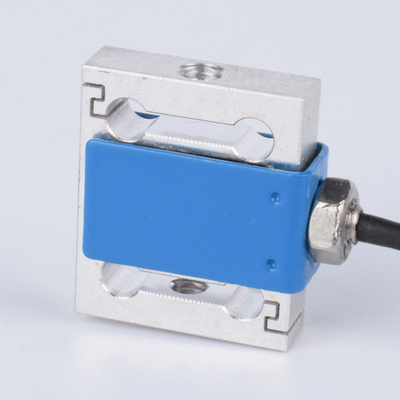

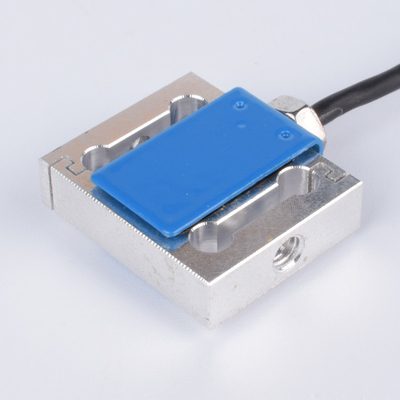

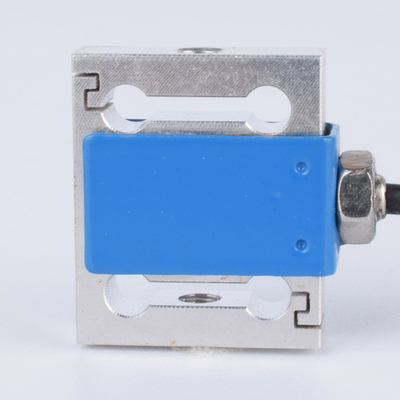

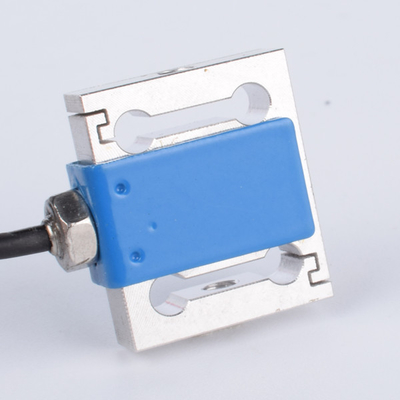

100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell
1. Descriptions
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 100,300,500,1000,3000,5000,10000kg or customized |
| Rated output | 2.0±0.25%mV/V |
| Zero Balance | ±0.01mV/V |
| Non-linearity | ≤0.018%F.S. or customized |
| Hysteresis | ≤0.018%F.S. or customized |
| Repeatability | ≤0.024%F.S. or customized |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maxmum excitation Voltage | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Temp.effect on output | 0.014%F.S./10 ℃ |
| Temp.effect on zero | 0.017%F.S./10 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | ⌀5.4X3000mm or customized |
| Weight | 0.75kg or customized |
| Material | Alloy steel or customized |
3. Dimension
Need to be customized
4. Application
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C can be used in the field of automation equipment.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
