Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 10,20,50,100,200,500,1000N Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.016%F.S. Or Customized | Non-linearity: | ≤0.016%F.S. Or Customized |
| Hysteresis: | ≤0.018%F.S. Or Customized | Repeatability: | ≤0.02%F.S. Or Customized |
| High Light: | 0.02% S Beam Load Cell,10n S Beam Load Cell,15v force washer transducer |
||

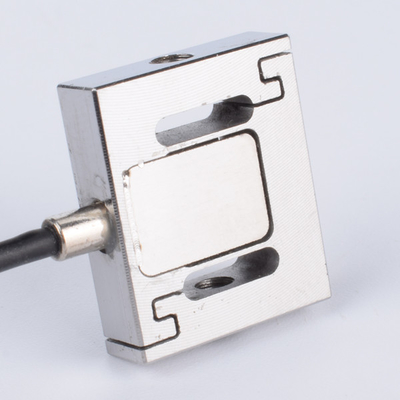

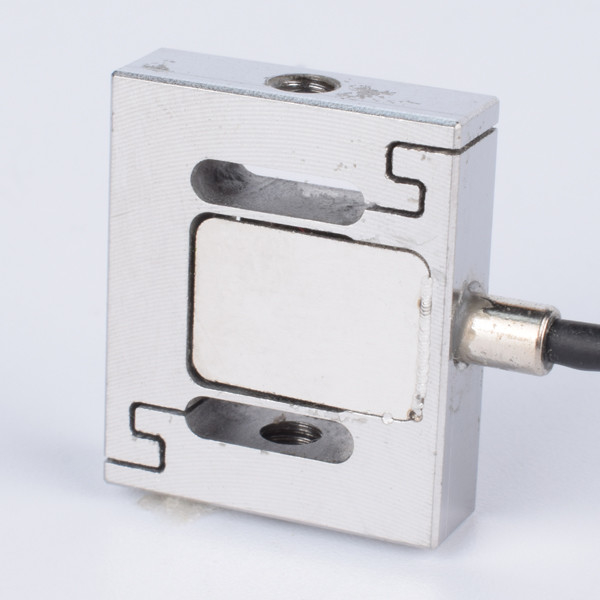

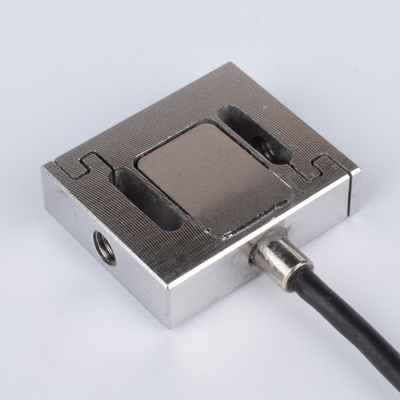

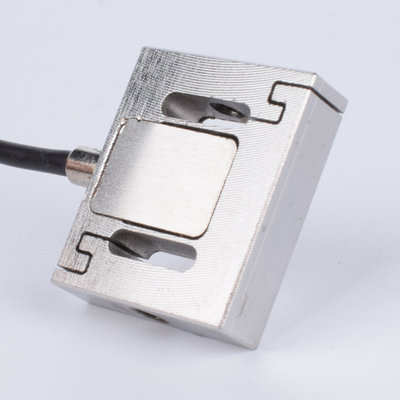

10,20,50,100,200,500,1000N or customized S Beam Load Cell
1. Descriptions
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 10,20,50,100,200,500,1000N or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.016%F.S. or customized |
| Non-linearity | ≤0.016%F.S. or customized |
| Hysteresis | ≤0.018%F.S. or customized |
| Repeatability | ≤0.02%F.S. or customized |
| Input impedance | 650/350±5Ω |
| Output impedance | 650/350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x1000mm or customized |
| Weight | 0.1kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L can be used to install and test cell phone components.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
