Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 5,10,20,50,100,200N |
|---|---|---|---|
| Rated Output: | 2.0±10%mV/V | Non-linearity: | ≤0.05%F.S. |
| Repeatability: | ≤0.05%F.S. | Material: | Stainless Steel |
| High Light: | 200n S Beam Load Cell,stainless steel Beam Load Cell,5n 5v load cell |
||

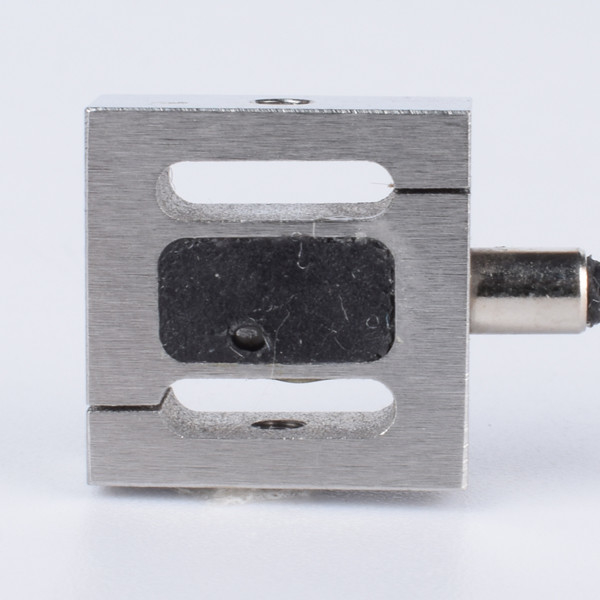

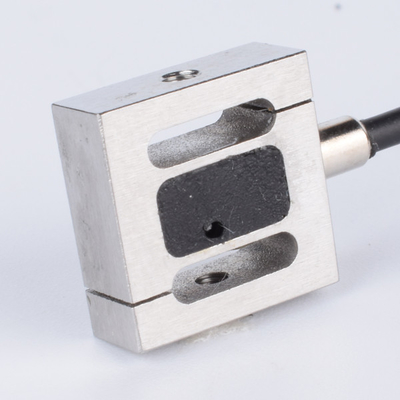

5-200N Stainless Steel S Beam Load Cell
1. Descriptions
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 5,10,20,50,100,200N |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 650/350±5Ω |
| Output impedance | 650/350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |
3. Dimension
4. Application
5-200N Stainless Steel S Beam Load Cell FA301 could be used for riveting machine.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
