Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 50,100,200,500,1000,2000kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.025%F.S. Or Customized | Non-linearity: | ≤0.03%F.S. Or Customized |
| Hysteresis: | ≤0.025%F.S. Or Customized | Repeatability: | ≤0.025%F.S. Or Customized |
| High Light: | 350 ohms s type load cell 1000kg,0.03% s type load cell 1000kg,2000kg load scale sensor |
||

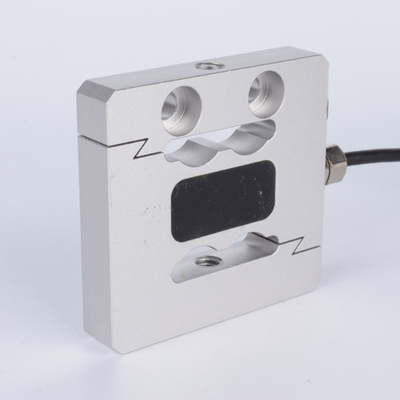

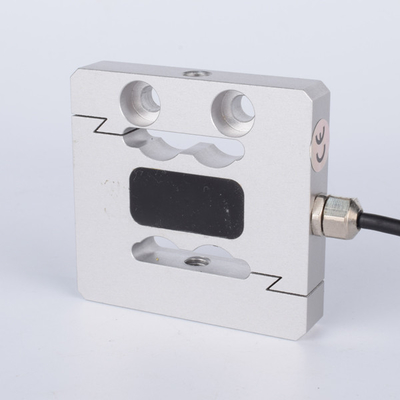

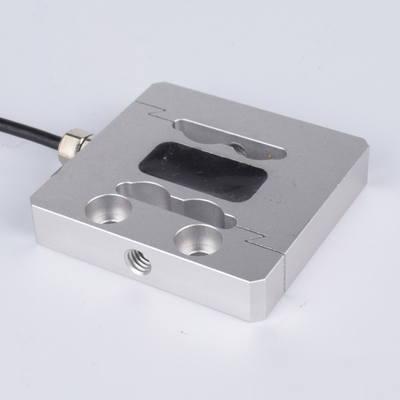

50,100,200,500,1000,2000kg Or Customized S Beam Load Cell
1. Descriptions
50,100,200,500,1000,2000kg Or Customized S Beam Load Cell FA310 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA310 can be used to measure load 50kg,100kg,200kg,500kg,1000kg and 2000kg or customized capacity, its Creep(30min),Hysteresis and Repeatability all ≤0.025%F.S. or can be customized, and its Non-linearity ≤0.03%F.S. or can also be customized.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 50,100,200,500,1000,2000kg or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.025%F.S. or customized |
| Non-linearity | ≤0.03%F.S. or customized |
| Hysteresis | ≤0.025%F.S. or customized |
| Repeatability | ≤0.025%F.S. or customized |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm or customized |
| Weight | 0.2kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
50,100,200,500,1000,2000kg Or Customized S Beam Load Cell FA310 can be used in welding machines.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
