Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 10,20,50,100,200,500,1000N |
|---|---|---|---|
| Rated Output: | 2.0±10%mV/V | Non-linearity: | ≤0.05%F.S. |
| Repeatability: | ≤0.05%F.S. | Material: | Stainless Steel |
| High Light: | 10n s style load cell,2mv v s style load cell,1kn accurate force sensor |
||

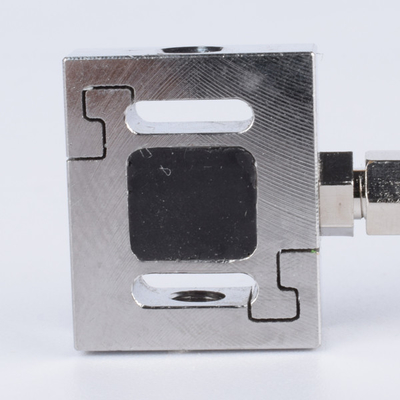

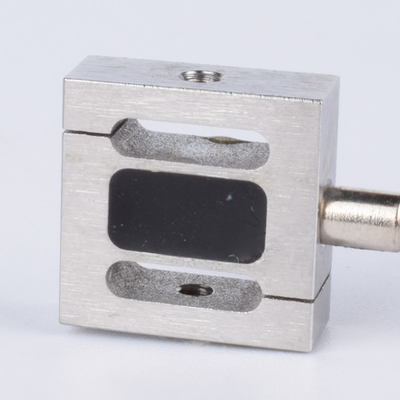

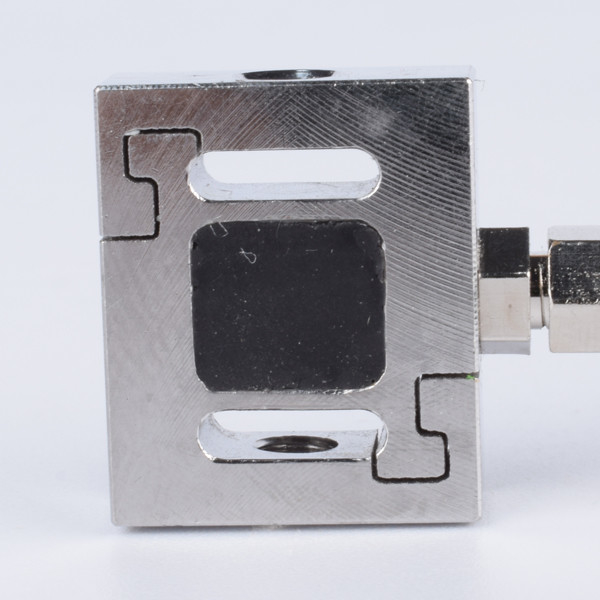

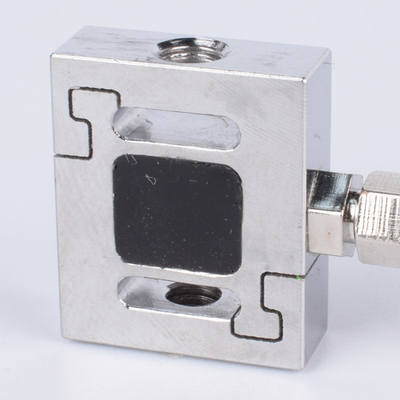

10-1000N Stainless Steel S Beam Load Cell
1. Descriptions
10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 10,20,50,100,200,500,1000N |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 650/350±5Ω |
| Output impedance | 650/350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |
3. Dimension
4. Application
10-1000N Stainless Steel S Beam Load Cell FA302 can be used for plugging and unplugging force testers.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
