Product Details:
|
| Product Name: | Tensile-compressive Force Sensor | Capacity: | 200g, 500g |
|---|---|---|---|
| Sensitivity: | 1.0/2.0±20%mV/V | Non-linearity: | ≤0.05%F.S. |
| Repeatability: | ≤0.05%F.S. | Material: | Stainless Steel/ Alloy Steel |
| Highlight: | 200g Tensile Compressive Force Sensor,RoHS Tensile Compressive Force Sensor |
||

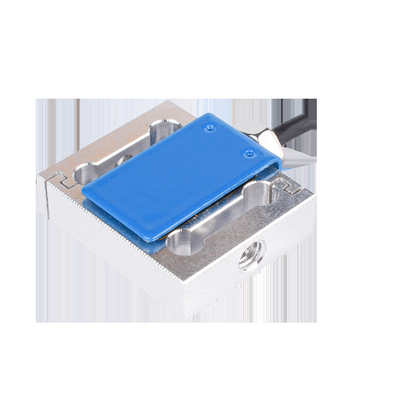

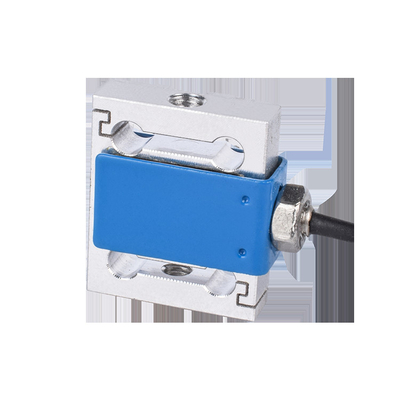

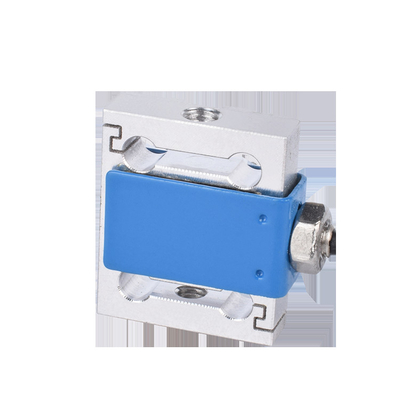

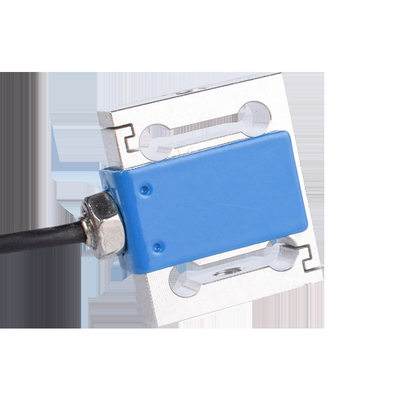

High presicion tensile-compressive force sensor for insertion and extraction force test
1. Descriptions
200g, 500g Stainless Steel tensile-compressive force sensor FA302L is a model of our brand FIBOS FA3-Series, tensile-compressive Load Cell FA303 can be used to measure load 50-2000N capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.05%F.S., and its Repeatability ≤0.05%F.S., its Cable size is ⌀2x3000mm.
2. Specifications
| Product name | tensile-compressive force sensor |
| Capacity | 200g, 500g |
| Sensitivity | 1.0/2.0±20%mV/V |
| Zero Balance | ≤±0.05mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 350/400±20Ω |
| Output impedance | 350/400±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60℃ |
| Operating Temp Range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel/Alloy steel |
3. Dimension
4. Application
200g, 500g Stainless Steel tensile-compressive Load Cell FA302L can be used for insertion and extraction force test.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
