Product Details:
|
| Product Name: | High Precision 2.5T 5T 10T S Type Load Cell For Hopper Scale | Capacity: | 25-500KG,0.75-10T |
|---|---|---|---|
| Sensitivity: | 2.0/3.0±1%mV/V | Non-linearity: | ≤0.03%F.S. |
| Repeatability: | ≤0.03%F.S. | Material: | Stainless Steel |
| Highlight: | 10T S Type Load Cell,Hopper Scale S Type Load Cell |
||

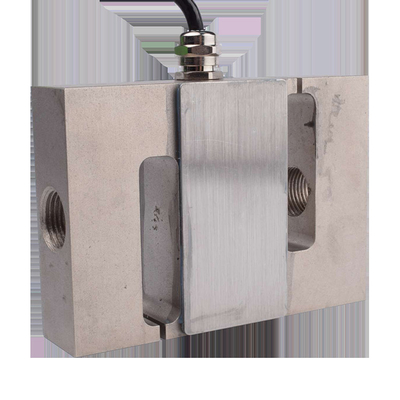

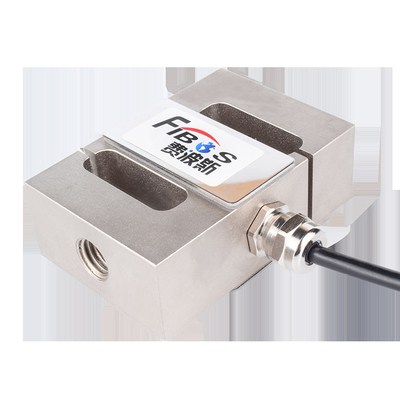

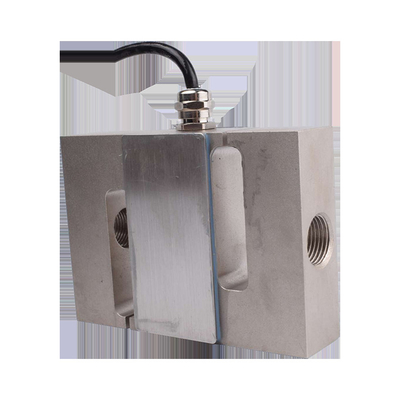

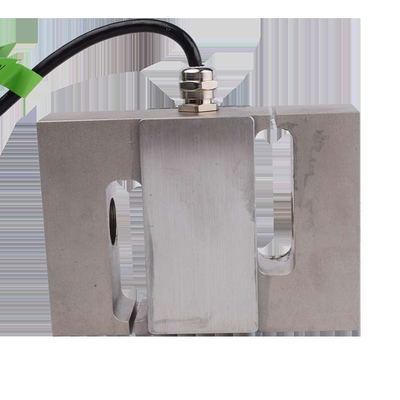

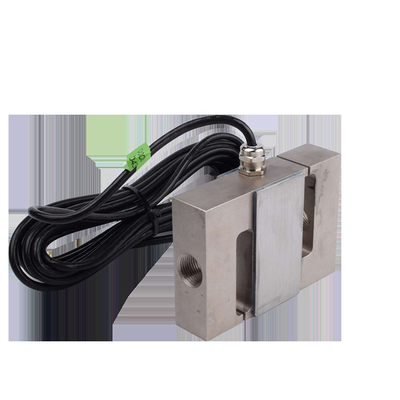

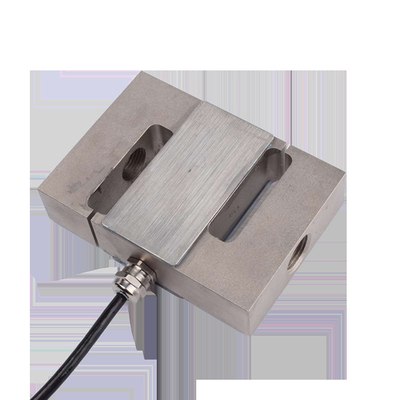

High Precision Stainless Steel 2.5T 5T 10T S Type Load Cell For Hopper Scale
1. Descriptions
25-500KG,0.75-10T Stainless Steel tensile-compressive force sensor FA307 is a model of our brand FIBOS FA3-Series, tensile-compressive Load Cell FA3037 can be used to measure load 25-500KG,0.75-10T capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.03%F.S., and its Repeatability ≤0.03%F.S., its Cable size is ⌀5x3000mm.
2. Specifications
| Product name | High precision 2.5T 5T 10T S type load cell for hopper scale |
| Capacity | 25-500KG,0.75-10T |
| Sensitivity | 2.0/3.0±1%mV/V |
| Zero Balance | ±0.06mV/V |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.03%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.025%F.S./10 ℃ |
| Temp.effect on zero | 0.025%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -30~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.2kg |
| Material | Stainless steel |
3. Dimension
4. Application
25-500KG,0.75-10T Stainless Steel tensile-compressive Load Cell FA307 can be used for hopper scale.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
