Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity(N): | X/Y/Z: 10, 20, 30, 50KG |
|---|---|---|---|
| Rated Output: | 1.0±10%mV/V | Non-linearity: | ≤0.1%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| High Light: | 300N 3 Axis Force Cell,Multi Load Cell 300N |
||

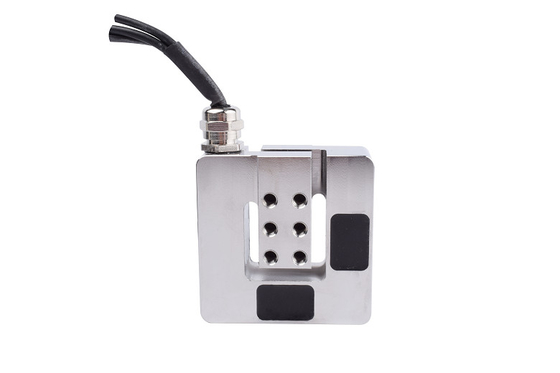

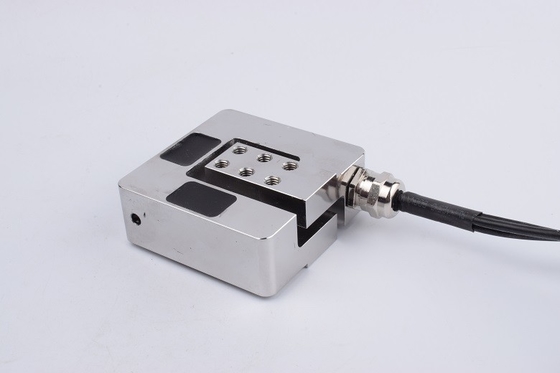

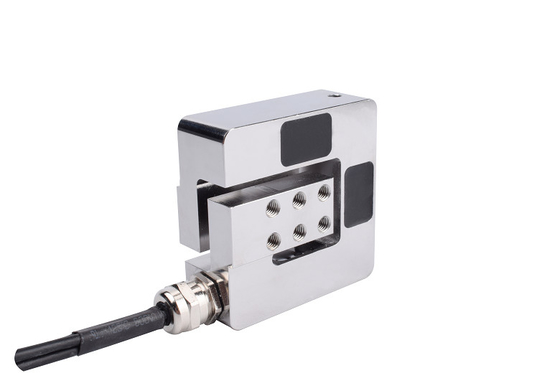

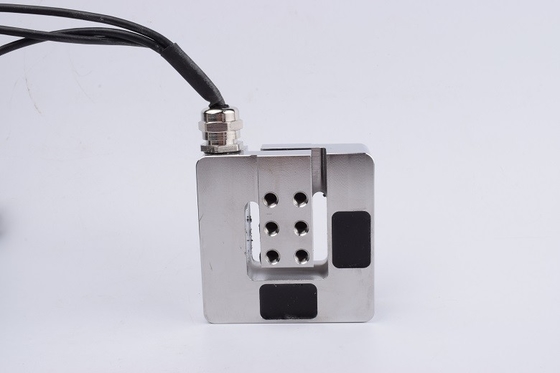

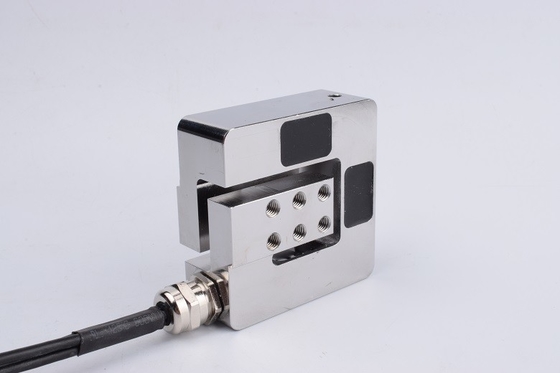

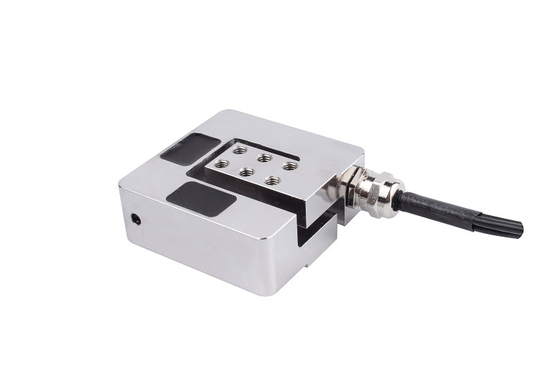

Multi Load Cell 300N 3 Axis Force Cell With Amplifier Transmitter For Robot Industry
1. Descriptions:
XYZ 10-50kg Alloy Steel 3 Axis Force Sensor FA742 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA742 can be used to measure 3-axis force, its X axis,Y axis and Z axis force range are all the same 50N,100N,200N,300N and 500N, its Rated output range is 1.0±10%mV/V, its Material is Stainless steel.
2. Specifications:
| Product name | 3 Axis Force Sensor |
| Capacity(kg) |
X:10/20/30/50 Y:10/20/30/50 Z:10/20/30/50 |
| Rated output | 1.0±10%mV/V |
| Zero Balance | ±2%F.S. |
| Creep(30min) | ≤0.1%F.S. |
| Interference error | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Material | Stainless steel |
3. Dimension
4. Application
XYZ 10-50kg Stainless Steel 3 Axis Force Sensor FA742 could be used in robot industry
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
