Product Details:
|
| Product Name: | Customized Fibos S Shaped Force Sensor 5 To 200N Force Transducer For Fatigue Test | Capacity: | 5,10,20,50,100,200N |
|---|---|---|---|
| Sensitivity: | 2.0±10%mV/V | Non-linearity: | ≤0.05%F.S. |
| Repeatability: | ≤0.05%F.S. | Material: | Stainless Steel |
| Creep(30min): | ≤0.05%F.S. | Hysteresis: | ≤0.05%F.S. |
| Input Impedance: | 650/350±5Ω | Output Impedance: | 650/350±5Ω |
| Highlight: | 200N S Shaped Force Sensor,Fatigue Test S Shaped Force Sensor |
||

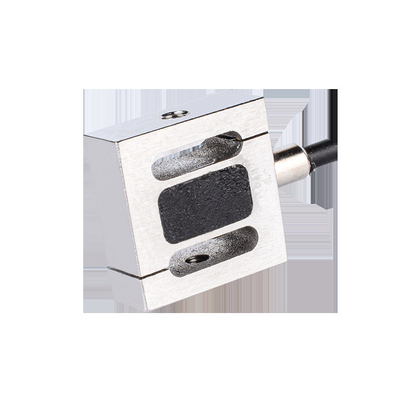

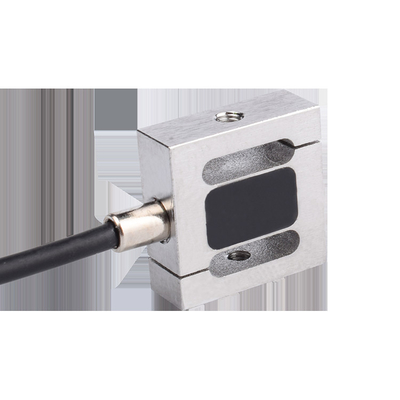

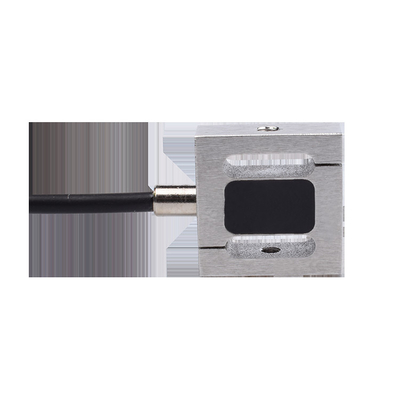

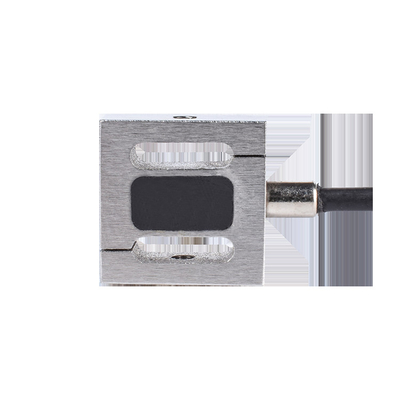

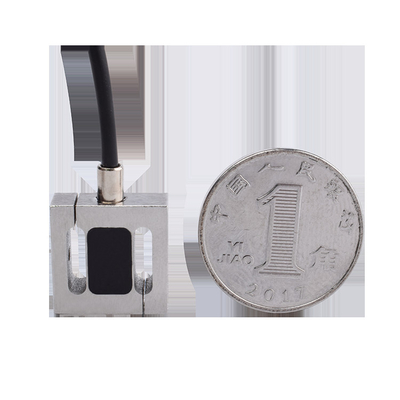

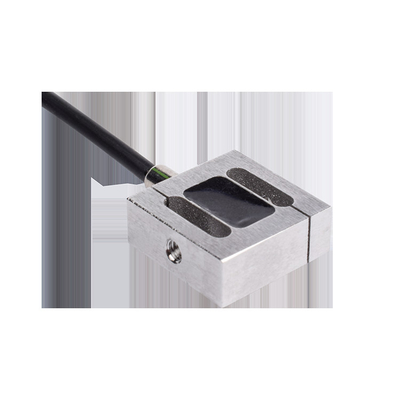

Customized Fibos S shaped force sensor 5 to 200N force transducer for fatigue test
1. Descriptions
1. High precision
2. Compact design
3. Wide measurement range
4. High waterproof level
5. Can be used for tension or compression
2. Specifications
| Product name | Customized Fibos S shaped force sensor 5 to 200N force transducer for fatigue test |
| Capacity | 5,10,20,50,100,200N |
| Sensitivity | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 650/350±5Ω |
| Output impedance | 650/350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |
3. Dimension
4. Company profile
Fibos Measurement Technology (Changzhou) Co., Ltd. is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
