Product Details:
|
| Product Name: | Single Point Weight Sensor For Digital Scales | Capacity: | 0.3, 0.5, 1, 1.5, 2, 3, 4, 5kg |
|---|---|---|---|
| Non-linearity: | ≤0.015%F.S. | Zero Balance: | ±0.02mV/V |
| Application: | Digital Scale | Material: | Aluminum Alloy |
| Weight: | 0.1kg | Maximum Excitation: | 20V |
| High Light: | 5kg Single Point Weight Sensor,FA501 Single Point Weight Sensor,Aluminium Alloy Weighing Sensor |
||

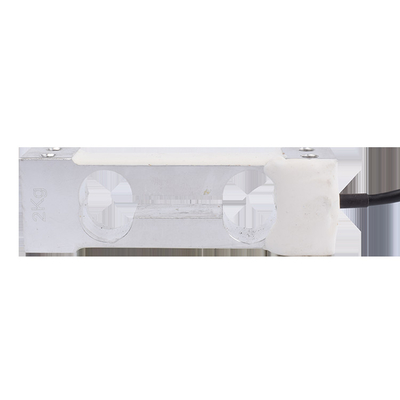

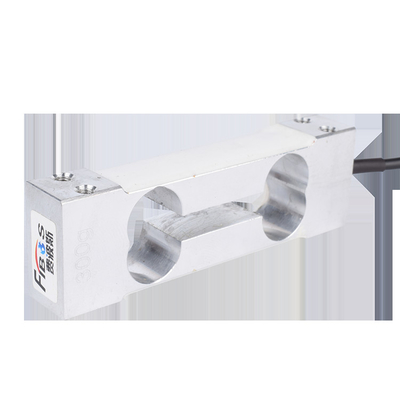

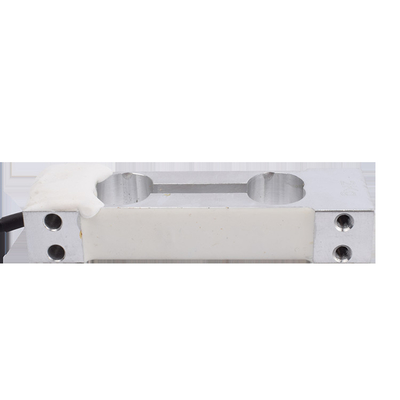

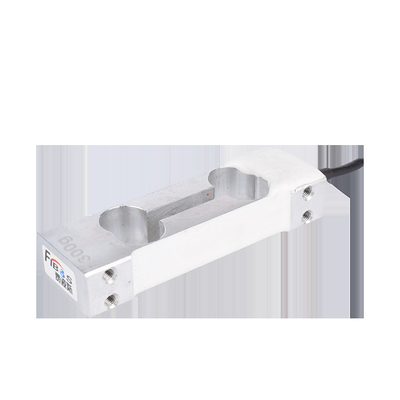

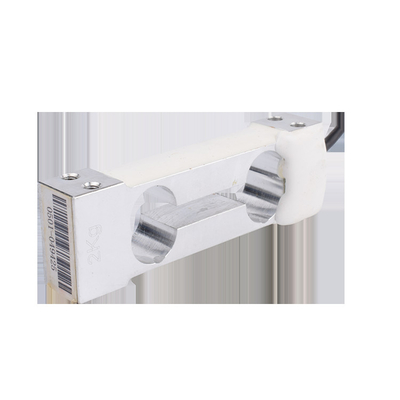

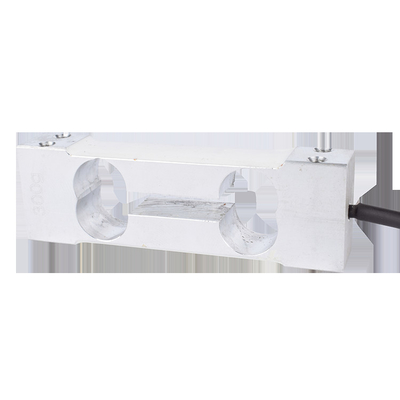

FA501 0.3-5kg Capacity Single Point Weight Sensor Aluminium Alloy Weighing Sensor
1. Descriptions:
0.3-5kg 0.015%F.S. Aluminum Alloy Single Point Weight Sensor For Digital Scale FA501 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA501 can be used to measure weight 100N,200N and 500N capacity, its Rated output range is 1.0±20%mV/V, its Zero balance range is ±1%F.S., its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.5%F.S..
Principle of single point sensors
The elastomer (elastic element, sensitive beam) is deformed elastically by an external force, the resistance strain gauge is pasted on its surface (conversion element) and with the deformation, the resistance changes (increases or decreases) and the corresponding measuring circuit converts the change in resistance into an electrical signal (voltage or current), thus completing the conversion process of the external signal.
2. Specifications:
| Product name | Single Point Weight Sensor For Digital Scale |
| Capacity | 0.3,0.5,1,1.5,2,3,4,5kg |
| Rated output |
1.0±10%mV/V(0.3,0.5kg) 2.0±10%mV/V(1~5kg) |
| Zero balance | ±0.02mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.015%F.S. |
| Hysteresis | ≤0.015%F.S. |
| Repeatability | ≤0.015%F.S. |
| Input resistance | 300±40Ω |
| Output resistance | 300±40Ω |
| Temp.effect on output | 0.017%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40 ℃ |
| Operating temp range | -25~70 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Weight | 0.1kg |
| Material | Aluminium alloy |
3. Dimension:
They are typically used in low capacity compact weighing systems. Single point load cells are unique in that they can accept an off-centre load, this means that they will accurately measure weight if it is placed anywhere on the scale, therefore, allowing them to be highly precise in industrial applications.
4. Application:
Single point load cells are used in weight scales, bench scales, platform scales, hopper and container weighing, parts counting, packaging scales, check weighing, OEM products, retail scales, conveyor scales, production processes, low cost applications and medical scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
