Product Details:
|
| Product Name: | Load Cell Amplifier | Comprehensive Accuracy: | ≤0.1%F.S. |
|---|---|---|---|
| Input Load: | Up To 4 Units Of 350Ω Sensors Can Be Connected | IP Class: | IP64 |
| Input Specifications: | 0.4~6mV/V | Sampling Frequency: | ≥100HZ |
| High Light: | IP64 Load Cell Amplifier,0.1% Load Cell Amplifier,4 units strain gauge instrumentation amplifier |
||
Input Load 4 * 350Ω Sensors IP64 Load Cell Amplifier Force Measuring Amplifier
1. Descriptions

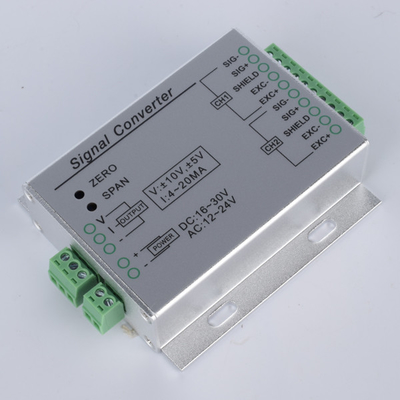

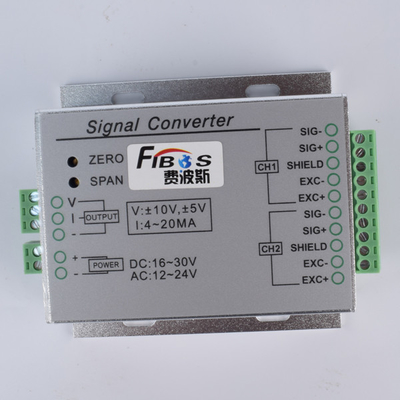

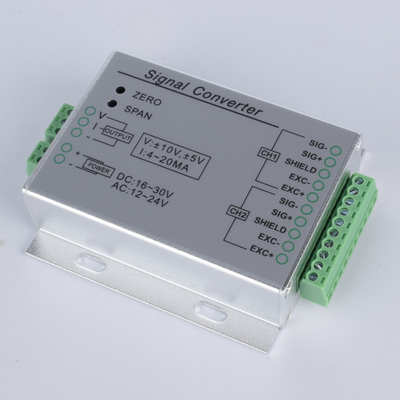

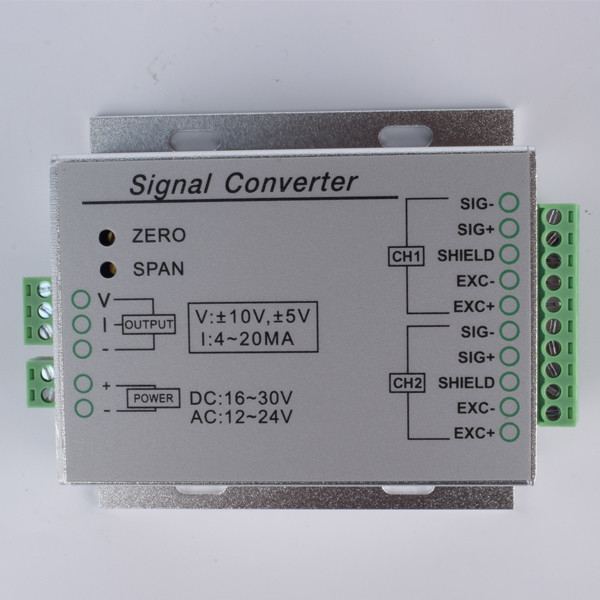

Input Load 4 * 350Ω Sensors IP64 Load Cell Amplifier Force Measuring Amplifier FA01A is a model of our brand FIBOS Load Cell Amplifier&instrument series, Load Cell Amplifier Force Measuring Amplifier FA01A belongs to FA01, its Comprehensive accuracy ≤0.1%F.S., its protection level is IP64, it could be used in the temp range from -30℃ up to 60℃.
2. Specifications
| Product name | Load Cell Amplifier |
| Input specifications | 0.4~6mV/V |
| Comprehensive accuracy | ≤0.1%F.S. |
| Sensor excitation voltage | 5VDC±2%, 100mA |
| Power supply | DC:15V~30V |
| Input load | Up to 4 units of 350Ω sensors can be connected |
| Rated Output | 0~±10V/4-20mA |
| Operating temp range | -30~60 ℃ |
| Surrounding environment | Humidity:-10~55 ℃ Storage:-25~65 ℃ Humidity:35~85%RH Storage:35~85%RH |
| Sampling frequency | ≥100HZ |
| IP Class | IP64 |
3. Dimension
4. Application
Input Load 4 * 350Ω Sensors IP64 Load Cell Amplifier Force Measuring Amplifier FA01A can be used to display values for load cells used in various electronic scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
