Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 100,200,300,500kg |
|---|---|---|---|
| Rated Output: | 2.0±1%mV/V | Non-linearity: | ≤0.03%F.S. |
| Repeatability: | ≤0.02%F.S. | Material: | Alloy Steel |
| High Light: | alloy s beam force sensor,100kg s beam force sensor,500kg compressive load cell |
||

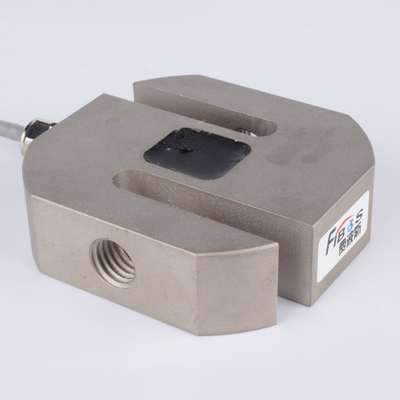

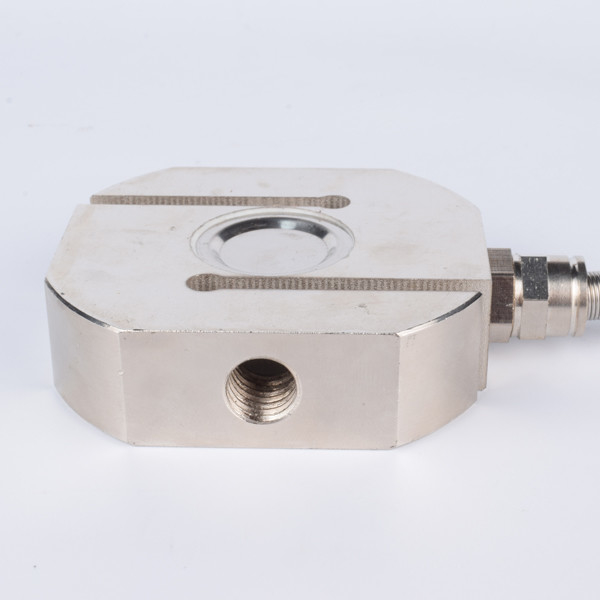

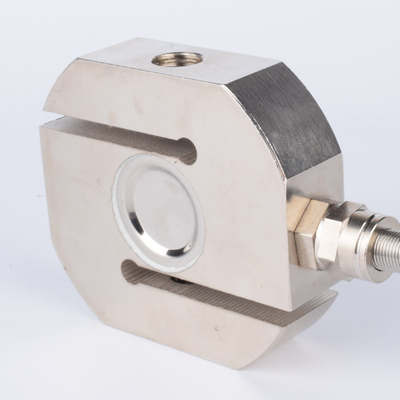

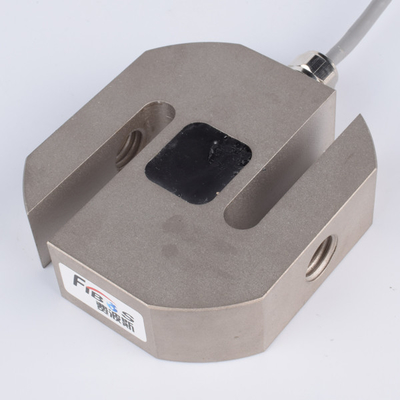

100-500kg Alloy Steel S Beam Load Cell
1. Descriptions
100-500kg Alloy Steel S Beam Load Cell FA308 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA308 can be used to measure load 100kg,200kg,300kg and 500kg capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.03%F.S., and its Repeatability ≤0.02%F.S., its Cable size is ⌀5x3000mm.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 100,200,300,500kg |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±0.06mV/V |
| Creep(30min) | ≤0.03%F.S. |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.03%F.S. |
| Repeatability | ≤0.02%F.S. |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x3000mm |
| Weight | 0.5kg |
| Material | Alloy steel |
3. Dimension
4. Application
100-500kg Alloy Steel S Beam Load Cell FA308 can be used for packaging scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
