Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 200,300,600g,1,1.5,3kg |
|---|---|---|---|
| Rated Output: | 1.0±20%mV/V | Non-linearity: | ≤0.015%F.S. |
| Repeatability: | ≤0.015%F.S. | Material: | Aluminum Alloy |
| High Light: | 200g single point load cell,600g single point load cell,aluminum alloy compression force transducer |
||

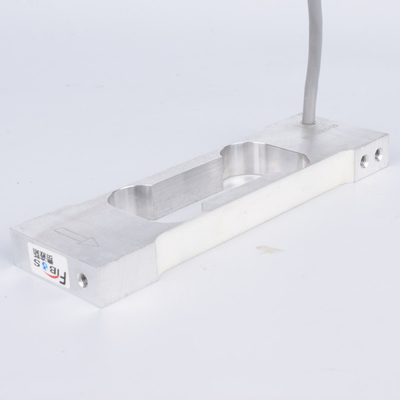

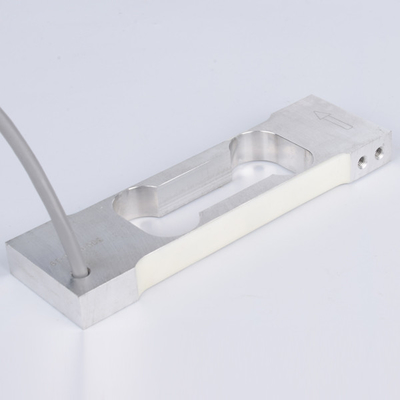

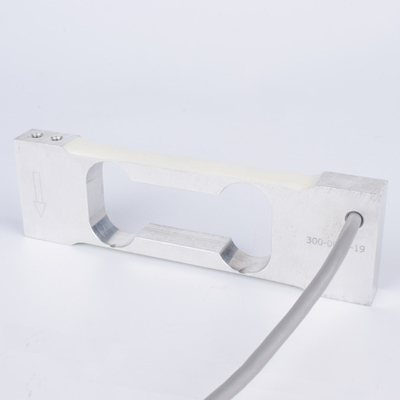

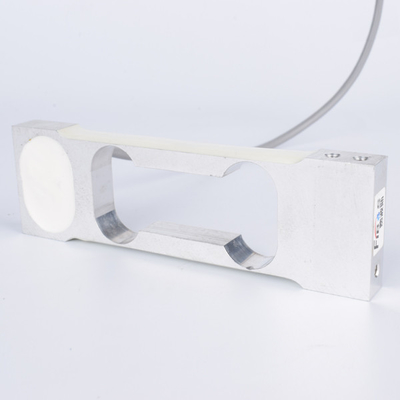

200-600g 1-3kg Aluminum Alloy Single Point Weight Sensor
1. Descriptions
200-600g 1-3kg Aluminum Alloy Single Point Weight Sensor FA502 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA502 its Material is Aluminum alloy and its Maximum platform size is 100mmX100mm, it can be used to measure weight 200g,300g,600g,1kg,1.5kg and 3kg capacity, its Zero Balance range is ±0.05mV/V.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 200,300,600g,1,1.5,3kg |
| Rated output | 1.0±20%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.016%F.S. |
| Non-linearity | ≤0.015%F.S. |
| Hysteresis | ≤0.015%F.S. |
| Repeatability | ≤0.015%F.S. |
| Input impedance | 405±5Ω |
| Output impedance | 350±3Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.03%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~50 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Weight | 0.1kg |
| Material | Aluminum alloy |
| Max.platform size | 100mmX100mm |
3. Dimension
4. Application
200-600g 1-3kg Aluminum Alloy Single Point Weight Sensor FA502 could be used for counting scale.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
