Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 50~1000kg |
|---|---|---|---|
| Accuracy Class: | C3 | Rated Output: | 2.0±20%mV/V |
| Non-linearity: | ≤0.017%F.S. | Material: | Aluninum Alloy |
| High Light: | aluminum alloy Single Point Weight Sensor,C3 Single Point Weight Sensor,1000kg high precision load cell |
||

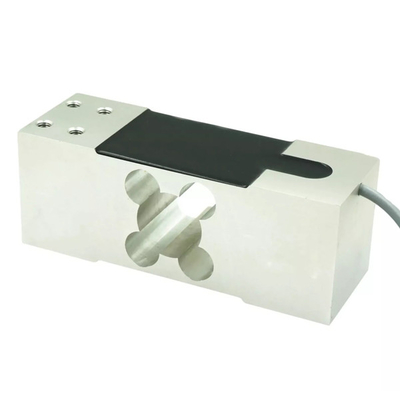

50-1000kg High Precision C3 Aluninum Alloy Single Point Weight Sensor
1. Descriptions
50-1000kg C3 Aluninum Alloy Single Point Weight Sensor FA506 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA506 can be used to measure weight ranges from 50kg up to 1000kg capacity, its Accuracy class is high precision standard C3, its Rated output range is 2.0±20%mV/V, its Zero Balance range is ±0.1mV/V, its Creep(30min) ≤0.02%F.S., its Non-linearity and Hysteresis both ≤0.017%F.S., its Repeatability ≤0.015%F.S..
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 50~1000kg |
| Accuracy class | C3 |
| Rated output | 2.0±20%mV/V |
| Zero Balance | ±0.1mV/V |
| Creep(30min) | ≤0.02%F.S. |
| Non-linearity | ≤0.017%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.015%F.S. |
| Input impedance | 405±15Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.0175%F.S./10 ℃ |
| Temp.effect on zero | 0.0177%F.S./10 ℃ |
| Insulation resistance | ≥2GΩ/100V(DC) |
| Recommended excitation | 1~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~50 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀6x1m |
| Weight | 0.6kg |
| Material | Aluninum alloy |
3. Dimension
4. Application
50-1000kg C3 Aluninum Alloy Single Point Weight Sensor FA506 can be used for bench top electronic weighing equipment.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
