Product Details:
|
| Product Name: | Load Cell Amplifier | Input Specifications: | 0.4~6mV/V |
|---|---|---|---|
| Display Accuracy: | 0.01%F.S. | Input Load: | Up To 4 Units Of 350~1000Ω Sensors Can Be Connected |
| Interface: | RS485/232 | Sensor Excitation Voltage: | 5VDC±2%, 100mA(or 12VDC Optional) |
| High Light: | 350 ohms strain gauge load cell amplifier,1000 ohms strain gauge load cell amplifier,0.01% load cell signal conditioner |
||
Input Load 4 * 350~1000 Ω Sensors 0.01%F.S. Load Cell Amplifier
1. Descriptions

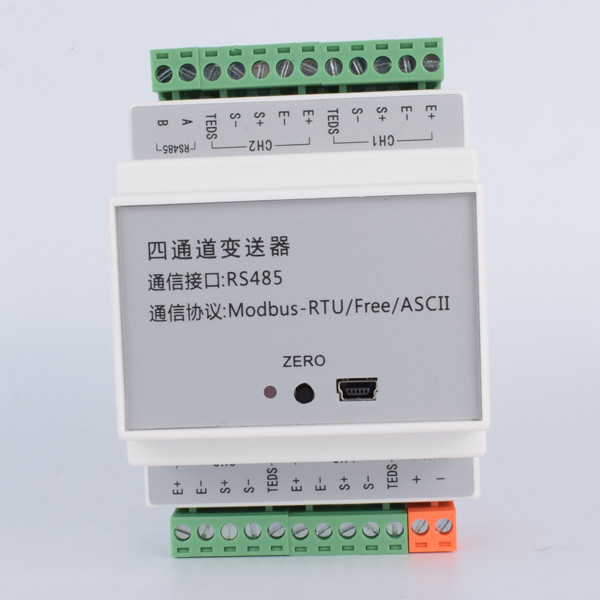

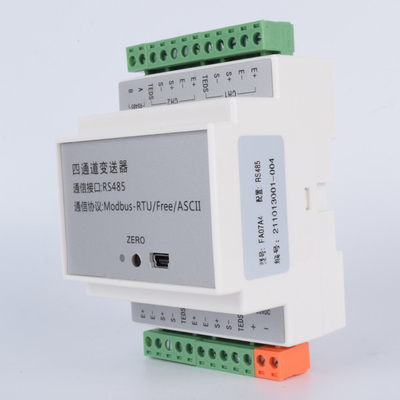

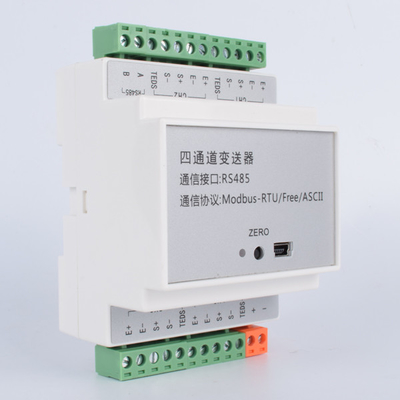

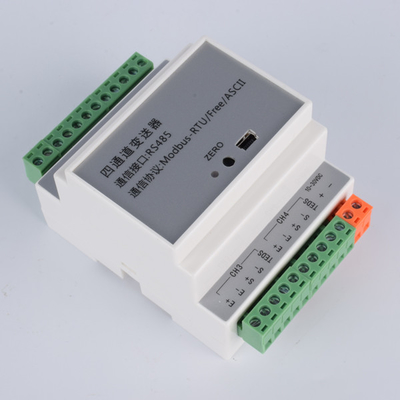

Input Load 4 * 350~1000 Ω Sensors 0.01%F.S. Load Cell Amplifier FA07-A4 is a model of our brand FIBOS Load Cell Amplifier and instrument series, FA07-A4 its Display accuracy is 0.01%F.S., it can be connected to 4 units of 350Ω~1000Ω sensors, its Output rate is 10 times,40 times,640 times and 1280 times per second.
2. Specifications
| Product name | Load Cell Amplifier |
| Input specifications | 0.4~6mV/V |
| Display accuracy | 0.01%F.S. |
| Sensor excitation voltage | 5VDC±2%, 100mA(or 12VDC optional) |
| Power supply | DC:15V~30V |
| Input load | Up to 4 units of 350~1000Ω sensors can be connected |
| Interface |
RS485/232 (one of two options) (Free/Modbus RTU/ASCII protocol) |
| Operating temp range | -30~60 ℃ |
| Withstand voltage | One minute at 2000V AC50/60Hz |
| Surrounding environment |
Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| A/D performance | 24-bit, Delata-Sigma method |
| Output rate | 10/40/640/1280 Times/sec |
3. Dimension
4. Application
Input Load 4 * 350~1000 Ω Sensors 0.01%F.S. Load Cell Amplifier FA07-A4 could be applied to display values from Single Point Weight Sensor.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
