Product Details:
|
| Product Name: | Load Cell Amplifier | Display Accuracy: | 0.01%F.S. |
|---|---|---|---|
| Input Load: | Up To 6 Units Of 350Ω Sensors Can Be Connected | IP Class: | IP64 |
| Baud Rate: | 1200,2400,4800,9600,19200,38400,57600,115200 | Resolution: | 1/3000 |
| High Light: | 0.01% Load Cell Amplifier,6 mv v Load Cell Amplifier,24 bit transducer amp |
||
Input Load 6 * 350Ω Sensors The Resolution 1/3000 0.01%F.S. IP64 Load Cell Amplifier
1. Descriptions

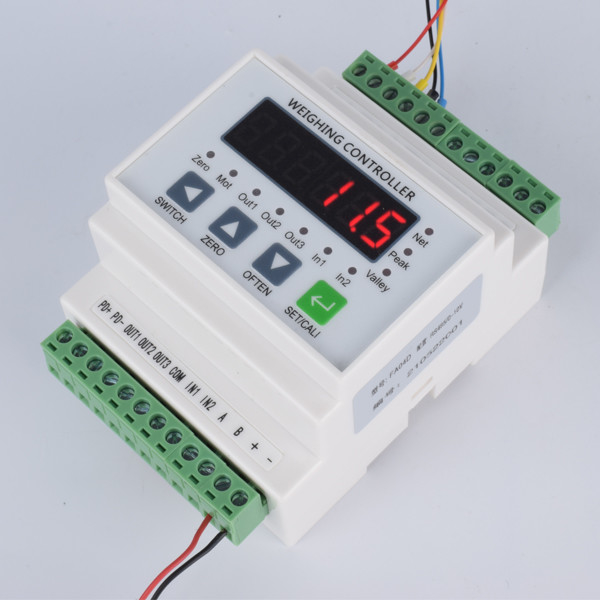

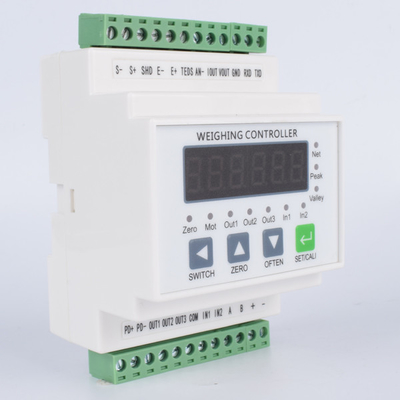

Input Load 6 * 350Ω Sensors The Resolution 1/3000 0.01%F.S. IP64 Load Cell Amplifier FA04D is a model of our brand FIBOS Load Cell Amplifier and instrument series, it has a Single-row 6-digit LED display as monitor, its Display accuracy is 0.01%F.S., it can connect to 6 units of 350Ω sensors, it supports IP64.
2. Specifications
| Product name | Load Cell Amplifier |
| Output specifications | 0.4~6mV/V |
| Display | Single-row 6-digit LED |
| Display accuracy | 0.01%F.S. |
| Sensor excitation voltage | 5VDC±2%,100mA |
| Input load | Up to 6 units of 350Ω sensors can be connected |
| Power supply | DC:10~30V |
| Operation temp range | -30~60℃ |
| IP Class | IP64 |
| A/D performance | 24-bit, Delta-Sigma method |
| Output rate | 10,40,640,1280 Times/sec |
| Baud rate | 1200,2400,4800,9600,19200,38400,57600,115200 |
| Withstand voltage | 1 minute at 2000V AC50/60Hz |
| Surrounding environment |
Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| Protocol type | Modbus RTU and Free Protocol |
| Communication output | RS232/RS485 |
| Analog output Specification | 0~±10V,0~20mA,4~20mA |
| Resolution | 1/3000 |
3. Dimension
4. Application
Input Load 6 * 350Ω Sensors The Resolution 1/3000 0.01%F.S. IP64 Load Cell Amplifier FA04D can be used to display values for load cells used in digital scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
