Product Details:
|
| Product Name: | Load Cell Amplifier | Display: | 2.8" TFT True Color / LCD Backlight |
|---|---|---|---|
| Comprehensive Accuracy: | <0.01%F.S. | Material: | Aluminum Alloy Shell |
| IP Class: | IP65 | Power Waste: | ≤10W |
| High Light: | FIBOS 0.01% transducer amplifier,0.01% transducer amplifier FIBOS,FA06A 0.01% transducer amplifier |
||

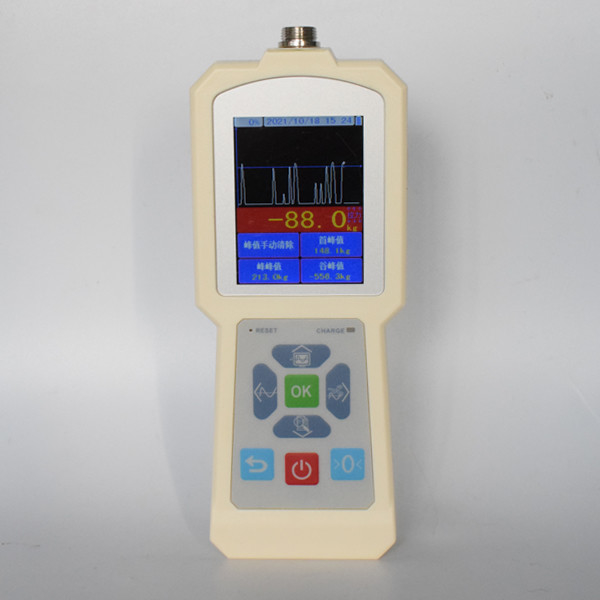

<0.01%F.S. IP65 Aluminum Alloy Shell Handheld Portable Weighing Instrument Load Cell Amplifier
1. Descriptions
<0.01%F.S. IP65 Aluminum Alloy Shell Handheld Portable Weighing Instrument Load Cell Amplifier FA06A is a model of our brand FIBOS Amplifier and instrument series, it monitor could display 2.8" TFT true color and LCD backlight, its Readability is 1/90000, its Output linear <0.002% and its Comprehensive accuracy <0.01%F.S..
2. Specifications
| Product name | Load Cell Amplifier |
| Display | 2.8" TFT true color / LCD backlight |
| Readability | 1/90000 |
| Output linear | <0.002% |
| Comprehensive accuracy | <0.01%F.S. |
| A/D Conversion speed | ≤1600 Times/sec |
| Accept sensor | -3.6~+3.6 mV/V |
| Input load | Up to 4 units of 350Ω sensors can be connected |
| Output specification | ±10V / 0~10V / 4~20mA |
| Temp.effect on output | ≤10ppm /℃ |
| Temp.effect on zero | ≤10μV /℃ |
| Excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤10W |
| Operation temp range | -20~70℃ |
| Weight approx. | 0.5kg |
| Material | Aluminum alloy shell |
| IP Class | IP65 |
3. Dimension
4. Application
<0.01%F.S. IP65 Aluminum Alloy Shell Handheld Portable Weighing Instrument Load Cell Amplifier FA06A can be used to display values for load cells used in electronic table scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
