Product Details:
|
| Product Name: | Load Cell Amplifier | Readability: | 1/90000 |
|---|---|---|---|
| Comprehensive Accuracy: | <0.01%F.S. | Input Load: | Up To 8 Units Of 350Ω Sensors Can Be Connected |
| Com.Output Specification: | RS232/RS485(parameters Optional) | Material: | Aluminum Alloy |
| IP Class: | IP65 | A/D Conversion Speed: | ≤1600 Times/sec |
| High Light: | 350 ohm rs strain gauge amplifier FIBOS,350 ohm rs strain gauge amplifiers,RoHS 350 ohm rs strain gauge amplifier |
||
Input Load 8 * 350Ω Sensors <0.01%F.S. IP65 Aluminum Alloy Weight Sensor Instrument Load Cell Amplifier
1. Descriptions

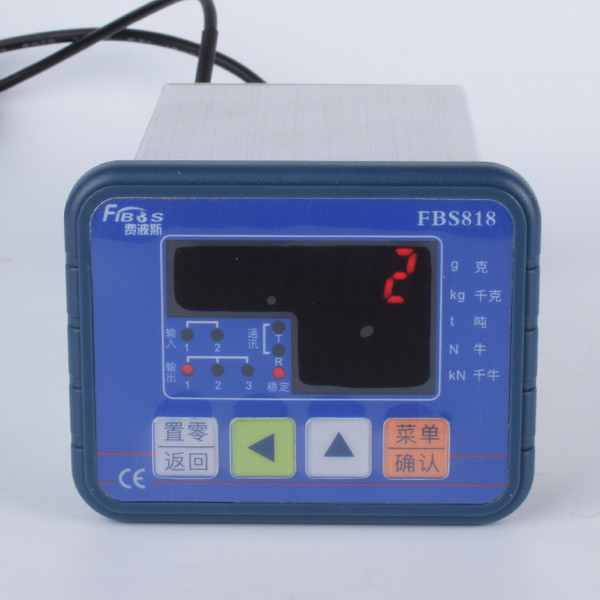

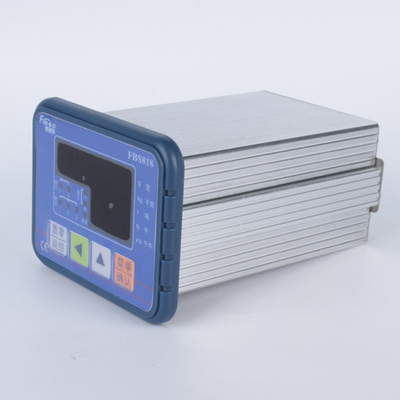

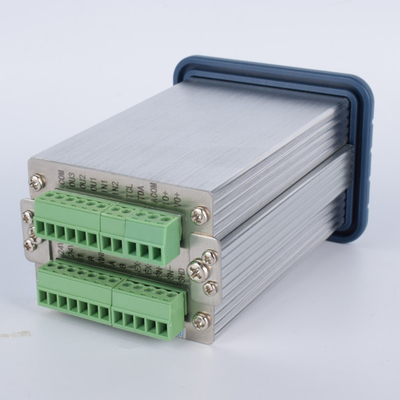

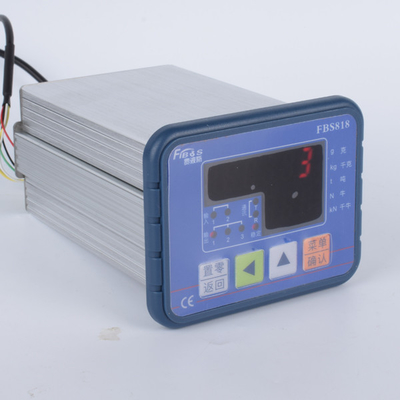

Input Load 8 * 350Ω Sensors <0.01%F.S. IP65 Aluminum Alloy Weight Sensor Instrument Load Cell Amplifier FBS818 is a model of our brand FIBOS Amplifier&instrument series, Weight Sensor Instrument Load Cell Amplifier FBS818 has Dual-row LED display, its Readability is 1/90000, its Output linear <0.002%, its Comprehensive accuracy <0.01%F.S..
2. Specifications
| Product name | Load Cell Amplifier |
| Display | Dual-row LED display |
| Readability | 1/90000 |
| Output linear | <0.002% |
| Comprehensive accuracy | <0.01%F.S. |
| A/D Conversion speed | ≤1600 Times/sec |
| Accept sensor | -3.6~+3.6m V/V |
| Input load | Up to 8 units of 350Ω sensors can be connected |
| Analog Output specification | ±10V /0~10V/ 4～20mA(parameters optional) |
| Com.Output specification | RS232/RS485(parameters optional) |
| Output specification(I/O) | Relay/transistor (hardware optional) |
| Temp.effect on output | ≤10ppm /℃ |
| Temp.effect on zero | ≤10μV /℃ |
| Excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤10W |
| Operation temp range | -20~70℃ |
| Weight approx. | 0.5kg |
| Material | Aluminum alloy |
| IP Class | IP65 |
3. Dimension
4. Application
Input Load 8 * 350Ω Sensors <0.01%F.S. IP65 Aluminum Alloy Weight Sensor Instrument Load Cell Amplifier FBS818 can be used to display values for load cells used in the chemical fiber industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
