Product Details:
|
| Product Name: | Load Cell Amplifier | Output Specifications: | 0.4~6mV/v |
|---|---|---|---|
| Display: | Single-row 5-digit Single-row 6-digit | Display Accuracy: | 0.01%F.S. |
| Input Load: | Up To 6 Units Of 350Ω Sensors Can Be Connected | Acquisition Frequency: | ≥100-5000HZ |
| IP Class: | IP64 | Material: | Aluminum Alloy |
| Analog Output: | 0~±10V,0~20mA,4~20mA | Resolution: | 1/3000 |
| High Light: | fibos 0.01% strain amplifier,0.01% strain amplifier fibos,0.01% strain amplifiers fibos |
||

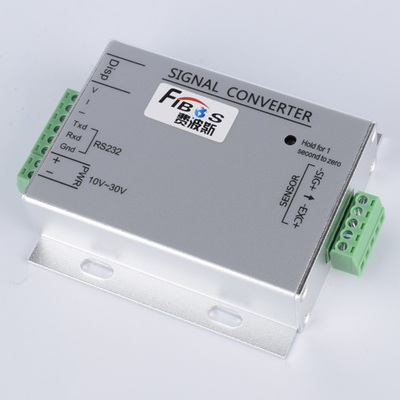

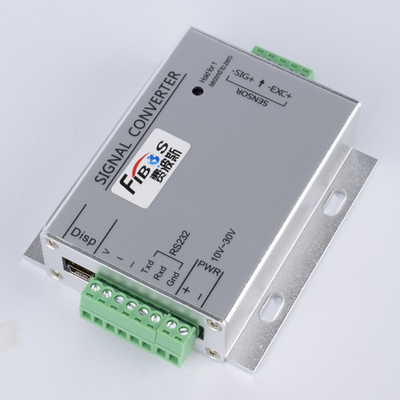

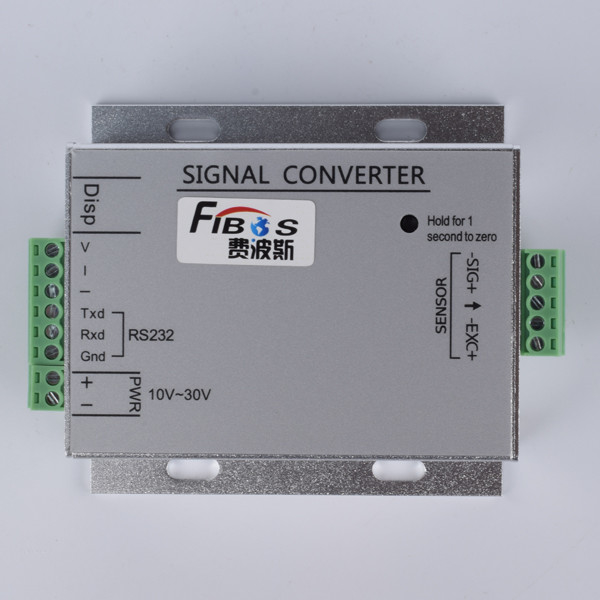

The Resolution 1/3000 0.01%F.S. IP64 Aluminum Alloy Load Cell Amplifier
1. Descriptions
The Resolution 1/3000 0.01%F.S. IP64 Aluminum Alloy Load Cell Amplifier FA11A is a model of our brand FIBOS FA11, Load Cell Amplifier FA11A can display Single-row 5-digit other side Single-row 6-digit, its Display accuracy is 0.01%F.S., its Sensor excitation voltage range is 5VDC±2%,100mA. It can connect up to 6 units of 350Ω sensors.
2. Specifications
| Product name | Load Cell Amplifier |
| Output specifications | 0.4~6mV/V |
| Display | Single-row 5-digit Single-row 6-digit |
| Display accuracy | 0.01%F.S. |
| Sensor excitation voltage | 5VDC±2%,100mA |
| Input load | Up to 6 units of 350Ω sensors can be connected |
| Power supply | DC:10~30V |
| Acquisition frequency | ≥100-5000HZ |
| Operation temp range | -30~60℃ |
| IP Class | IP64 |
| Material | Aluminum alloy |
| A/D performance | 24-bit,Delta-Sigma method |
| Output rate | 10,40,640,1280 Times/sec |
| Interface | RS485+RS232/ RS485+AnalogOutput(0~±10V/0~±5V/0~20mA/ 4~20mA)(Output method can choose RS232+RS485 or RS485+analog output.) |
| Withstand voltage | 1 minute at 2000V AC50/60Hz |
| Surrounding environment |
Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| Analog output | 0~±10V,0~20mA,4~20mA |
| Resolution | 1/3000 |
3. Dimension
4. Application
The Resolution 1/3000 0.01%F.S. IP64 Aluminum Alloy Load Cell Amplifier FA11A can be used to accurately display values for load cells used in hospitals to deliver blood donations.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
