Product Details:
|
| Product Name: | Load Cell Amplifier | Readability: | 1/90000 Or Customized |
|---|---|---|---|
| Output Linear: | <0.0017% Or Customized | Comprehensive Accuracy: | <0.013%F.S. Or Customized |
| Weight Approx.: | 0.55kg Or Customized | Material: | Aluminum Alloy Or Customized |
| High Light: | fibos 0.01 load amplifier,fibos 0.01 load amplifiers,0.01 load amplifiers fibos |
||
<0.01%F.S. Support 8 * 350Ω Sensors Or Customized Load Cell Amplifier
1. Descriptions

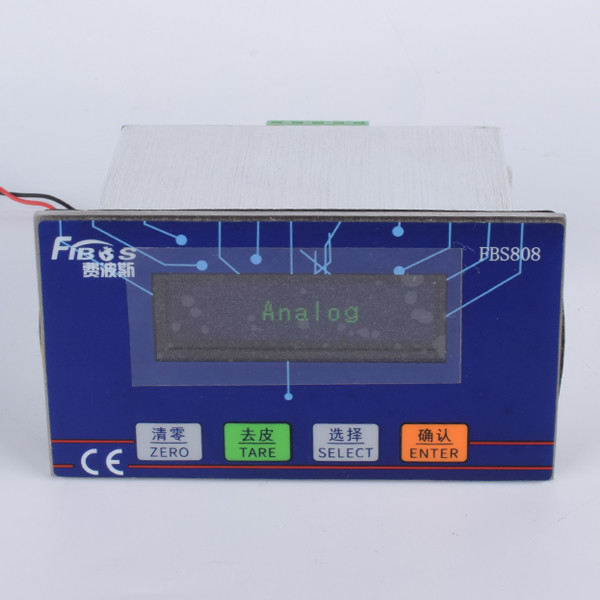

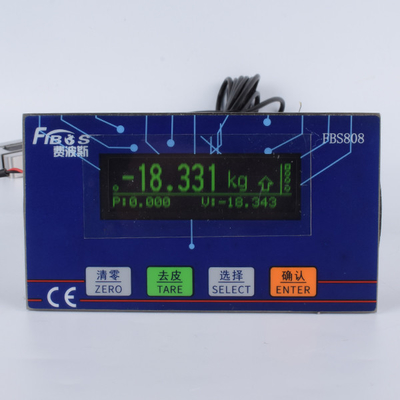

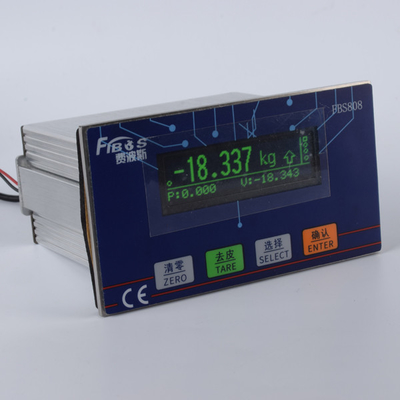

<0.01%F.S. Support 8 * 350Ω Sensors Or Customized Load Cell Amplifier FBA808 is a model of our FIBOS Load Cell Amplifier&instrument series, FBA808 has a Dual-row LED display or can be customized, its Readability is 1/90000 or also can be customized, its Comprehensive accuracy <0.013%F.S. or can also be customized.
2. Specifications
| Product name | Load Cell Amplifier |
| Display | Dual-row LED display or customized |
| Readability | 1/90000 or customized |
| Output linear | <0.0017% or customized |
| Comprehensive accuracy | <0.013%F.S. or customized |
| A/D Conversion speed | ≤1600 Times/sec |
| Accept sensor | -3.6~+3.6m V/V |
| Input load | Up to 8 units of 350Ω sensors can be connected |
| Analog Output specification | ±10V /0~10V/ 4～20mA(parameters optional) |
| Com.Output specification | RS232/RS485(parameters optional) |
| Output specification(I/O) | Relay/transistor (hardware optional) |
| Temp.effect on output | ≤10ppm /℃ or customized |
| Temp.effect on zero | ≤10μV /℃ or customized |
| Excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤10W |
| Operation temp range | -20~70℃ |
| Weight approx. | 0.55kg or customized |
| Material | Aluminum alloy or customized |
| IP Class | IP65 or customized |
3. Dimension
need to be customized
4. Application
<0.01%F.S. Support 8 * 350Ω Sensors Or Customized Load Cell Amplifier FBA808 can be used to display force values from Tension Compression Force Sensor.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
