Product Details:
|
| Product Name: | 2.2 Ton Single Shear Beam Load Cell | Capacity: | 2.2T |
|---|---|---|---|
| Sensitivity: | 1.94±0.1%mV/V | Non-linearity: | ≤0.17%F.S. |
| Repeatability: | ≤0.17%F.S. | Material: | Stainless Steel |
| Zero Balance: | ±2%F.S | Creep(30min): | ≤0.0166%F.S |
| High Light: | 2.2t Single Shear Beam Load Cell,SS Single Shear Beam Load Cell |
||

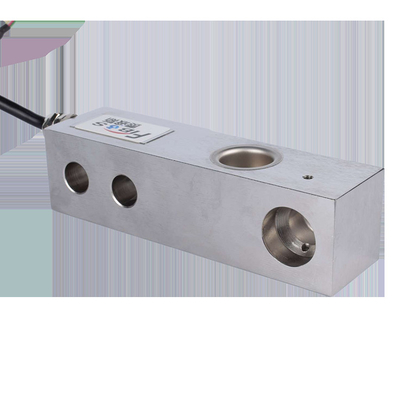

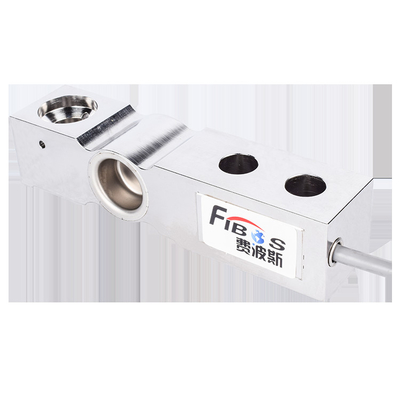

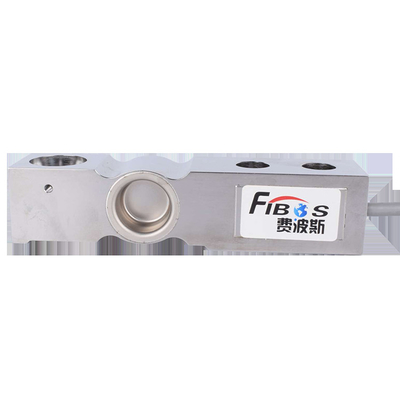

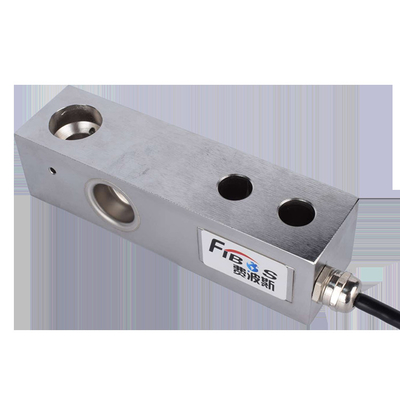

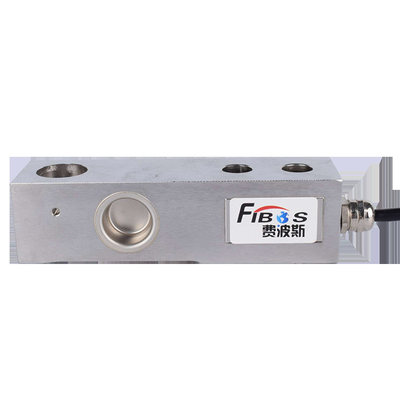

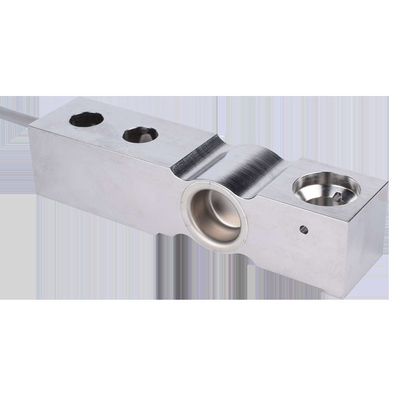

FA509 Stainless Steel 2.2 Ton Single Shear Beam Load Cell for small truck scale
1. Descriptions
Stainless steel Weight Sensor FA509 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category, Single Point Weight Sensor FA509 can be used to measure weight ranges from 0.22t up to 4.4t, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.17%F.S..
2. Specifications
| Product name | 2.2 Ton Single Shear Beam Load Cell |
| Capacity | 2.2T |
| Sensitivity | 1.94±0.1%mV/V |
| Zero Balance | ±2%F.S |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.17%F.S. |
| Hysteresis | ≤0.17%F.S. |
| Repeatability | ≤0.17%F.S. |
| Input impedance | 390±3Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.014%F.S./10 ℃ |
| Temp.effect on zero | 0.0125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size |
⌀5.4*1.5m |
3. Dimension
4. Application
2.2 Ton Single Shear Beam Load Cell FA509 could be used for weighing scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
