Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 50,100,200,500,1000,2000N Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.05%F.S. Or Customized | Non-linearity: | ≤0.05%F.S. Or Customized |
| Hysteresis: | ≤0.05%F.S. Or Customized | Repeatability: | ≤0.05%F.S. Or Customized |
| High Light: | S Type Load Cell 2000N,15v Tensile Compressive Transducer |
||

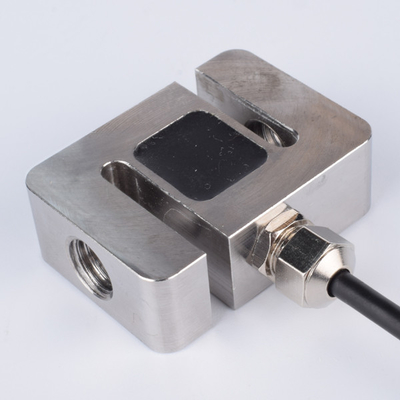

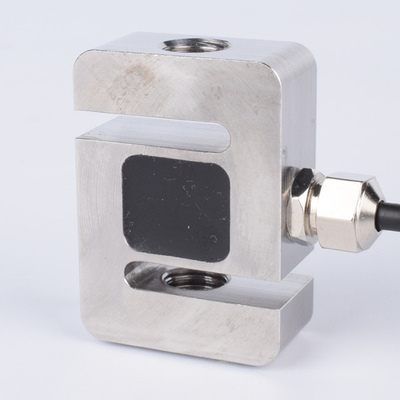

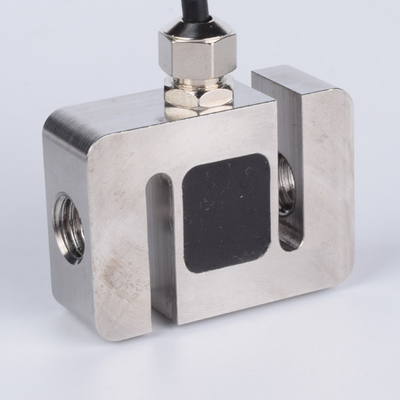

Stainless Steel S Type Load Cell 50-2000N 15v Tensile-Compressive Transducer
1. Descriptions
50,100,200,500,1000,2000N or customized S Beam Load Cell FA303 is a model which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N or customized capacity, its Cable size is ⌀3x3000mm or customized length.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 50,100,200,500,1000,2000N or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.05%F.S. or customized |
| Non-linearity | ≤0.05%F.S. or customized |
| Hysteresis | ≤0.05%F.S. or customized |
| Repeatability | ≤0.05%F.S. or customized |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.025%F.S./10 ℃ |
| Temp.effect on zero | 0.025%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm or customized |
| Weight | 0.2kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
50,100,200,500,1000,2000N or customized S Beam Load Cell FA303 can be used to install and test cell phone components.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
