Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 10,,20,50,100,200,500kg Or Customized |
|---|---|---|---|
| Zero Balance: | ±0.02mV/V | Cable Size: | ⌀5.4x1500mm Or Customized |
| Weight: | 0.5kg Or Customized | Material: | Stainless Steel Or Customized |
| High Light: | 500kg Strain Gauge Load Cells,20v Single Point Load Cells |
||
1. Descriptions

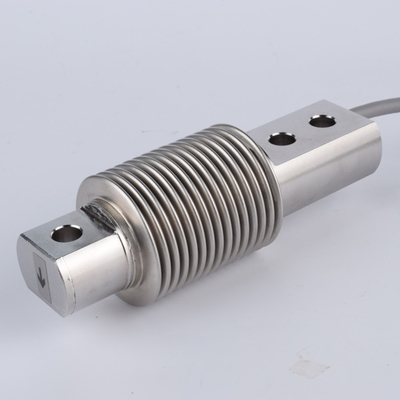

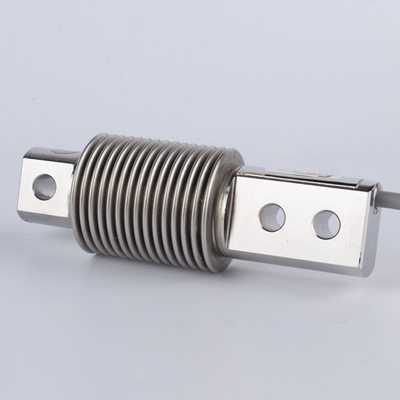

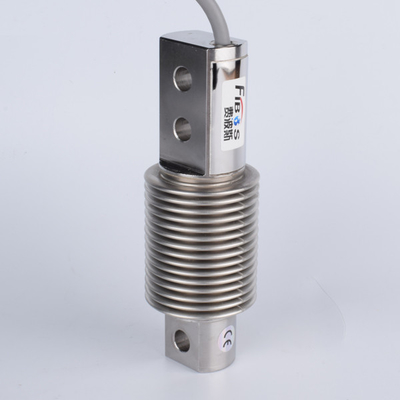

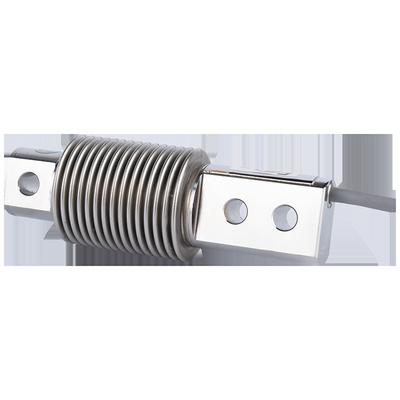

10,20,50,100,200,500kg Or Customized Single Point Weight Sensor FA510 is a customizable model of our brand FIBOS FA5-Series, Single Point Weight Sensor can be used to measure 10kg,20kg,50kg,100kg,200kg, and 500kg or customized capacity, its Zero balance range is ±0.02mV/V or customized, its Creep(30min) ≤0.0166%F.S. and Non-linearity ≤0.018%F.S. or can be customized, its Hysteresis ≤0.017%F.S. and Repeatability ≤0.018%F.S. or also can be customized.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 10,20,50,100,200,500kg or customized |
| Sensitivity | 2.0±0.05mV/V or customized |
| Zero balance | ±0.02mV/V or customized |
| Creep(30min) | ≤0.0166%F.S. or customized |
| Non-linearity | ≤0.018%F.S. or customized |
| Hysteresis | ≤0.017%F.S. or customized |
| Repeatability | ≤0.018%F.S. or customized |
| Input inpedance | 390±5Ω |
| Output inpedance | 350±5Ω |
| Temp.effect on output | 0.008%F.S./10 ℃ |
| Temp.effect on zero | 0.0125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40 ℃ |
| Operating temp range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4x1500mm or customized |
| Weight | 0.5kg or customized |
| Material | Stainless steel or customized |

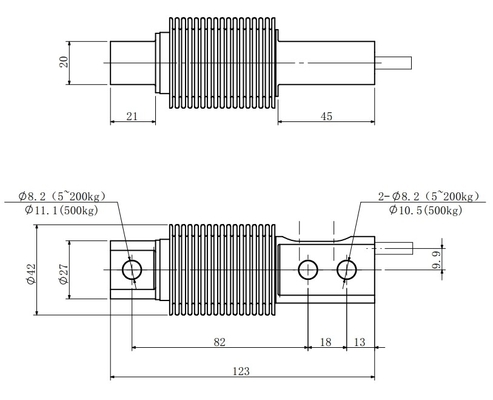

3. Dimension
Need to be customized
4. Application
10,20,50,100,200,500kg Or Customized Single Point Weight Sensor FA510 could be used for electronic platform scale.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
