Product Details:
|
| Product Name: | 500kg Single Point Load Cell | Capacity: | 500kg |
|---|---|---|---|
| Sensitivity: | 2.0±0.05mV/V | Non-linearity: | ≤0.018%F.S. |
| Repeatability: | ≤0.018%F.S. | Material: | Stainless Steel |
| Zero Balance: | ±0.02mV/V | Creep(30min): | ≤0.0166%F.S |
| High Light: | Shear Beam Load Cell 500kg,Floor Scale Shear Beam Load Cell |
||

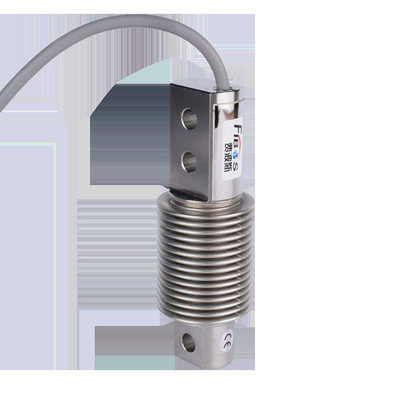

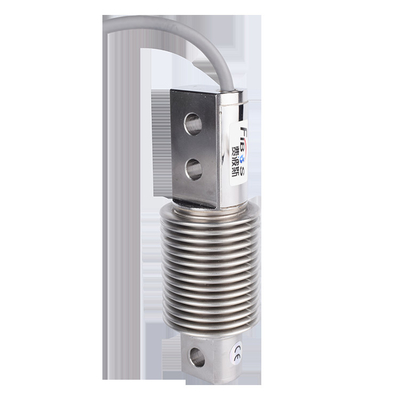

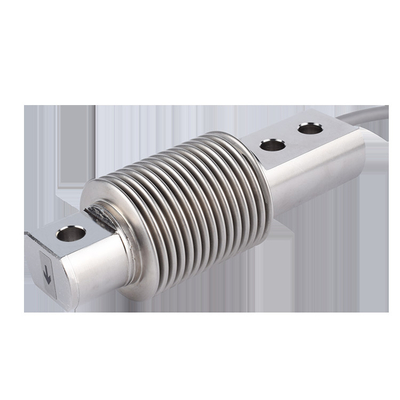

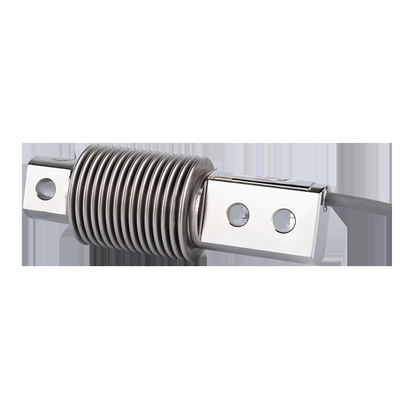

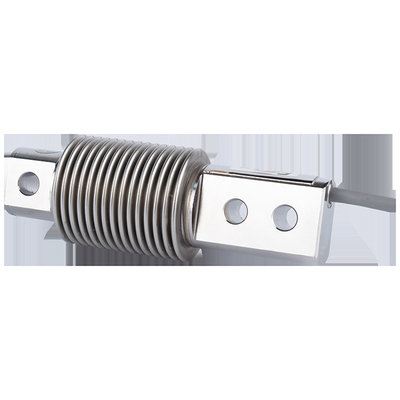

FA510 Stainless Steel 500kg Shear Beam Load Cell for industrial floor scale
1. Descriptions
Stainless steel Weight Sensor FA510 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category, Single Point Weight Sensor FA510 can be used to measure weight ranges from 500kg up to 4.4t, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.017%F.S..
2. Specifications
| Product name | 500kg Shear Beam Load Cell for industrial floor scale |
| Capacity | 500kg |
| Sensitivity | 2.0±0.05mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.018%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.018%F.S. |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.008%F.S./10 ℃ |
| Temp.effect on zero | 0.0125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size |
⌀5.4*1.5m |
3. Dimension
4. Application
500kg Single Shear Beam Load Cell FA510 could be used for inmdustrial floor scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
