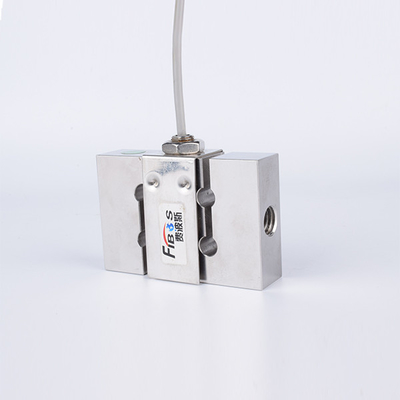

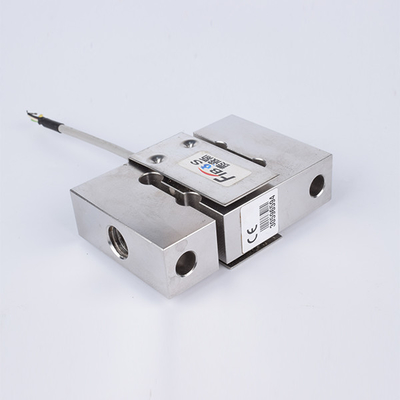

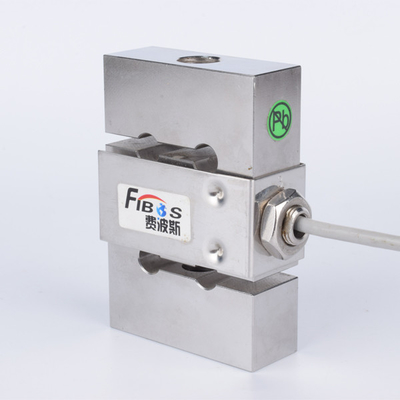

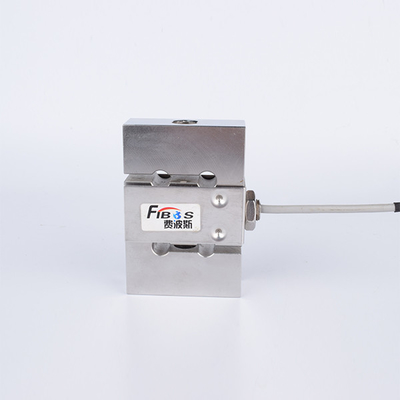

50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor

50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor
50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor 50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor 50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor 50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor

Large Image :  50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor

Product Details:
Place of Origin: Jiangsu, China
Brand Name: FIBOS
Certification: ISO CE RoHS
Model Number: FA305
Payment & Shipping Terms:
Minimum Order Quantity: To Be Negotiated
Price: To Be Negotiated
Packaging Details: 1.Opp bag 2.Custom box 3.According to your request
Delivery Time: 1-7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Pieces per Month

50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor

Description
Product Name: S Beam Load Cell Capacity: 50,100,200,500,1000,2000,3000,5000kg
Non-linearity: ≤0.018%F.S. Repeatability: ≤0.024%F.S.
Material: Stainless Steel/alloy Steel Application: Large Range Weight Measurement
High Light:

S Beam Load Cell 5000kg

,

S Type Alloy Steel Tension Sensor

50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor



1. Descriptions

50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.



2. Specifications



Product name S Beam Load Cell
Capacity 50,100,200,500,1000, 2000,3000,5000kg
Rated output 2.0±0.25%mV/V
Zero Balance ±0.01mV/V
Non-linearity ≤0.018%F.S.
Hysteresis ≤0.018%F.S.
Repeatability ≤0.024%F.S.
Input impedance 385±10Ω
Output impedance 350±5Ω
Insulation resistance ≥5000MΩ/100VDC
Recommended excitation 5~15V
Maxmum excitation Voltage 20V
Compensated Temp Range -10~40 ℃
Operating Temp Range -30~70 ℃
Temp.effect on output 0.014%F.S./10 ℃
Temp.effect on zero 0.017%F.S./10 ℃
Safe overload 150%F.S.
Ultimate overload 300%F.S.
Cable size ⌀5.4X3000mm
Weight -
Material Stainless steel/alloy steel



3. Dimension

50-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor 050-5000kg S Beam Load Cell Stainless Steel S Type Transduce Alloy Steel Tension Sensor 1



4. Application

50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 can be used for mechanical testing machine.



5.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.



Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.



Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.



Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
