Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 50,100,200,500,1000,2000,3000,5000kg |
|---|---|---|---|
| Non-linearity: | ≤0.018%F.S. | Repeatability: | ≤0.024%F.S. |
| Material: | Stainless Steel/alloy Steel | Application: | Large Range Weight Measurement |
| Zero Balance: | ±0.01mV/V | Operating Temp Range: | -30~70℃ |
| Cable Size: | φ5.4x3000mm | Hysteresis: | ≤0.018%F.S. |
| High Light: | 5000kg S Type Load Cell,SS S Beam Transducer |
||

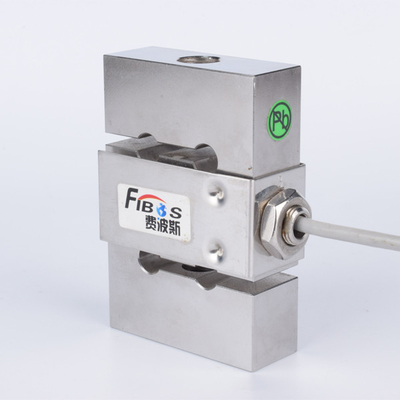

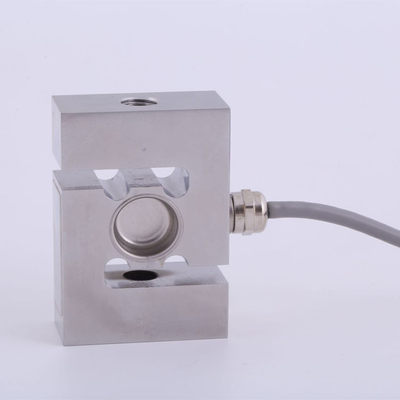

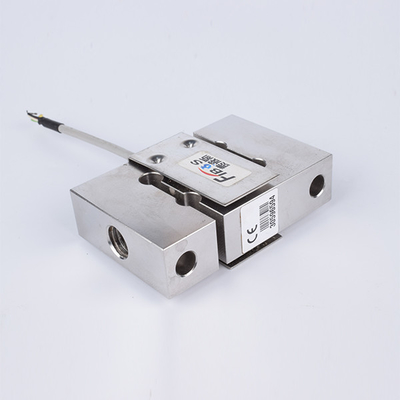

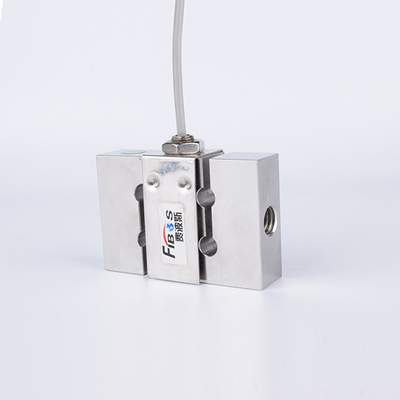

50-5000kg capacity Stainless Steel S Type Load Cell Stainless/Alloy steel S Beam transduce
1. Descriptions
50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 50,100,200,500,1000, 2000,3000,5000kg |
| Rated output | 2.0±0.25%mV/V |
| Zero Balance | ±0.01mV/V |
| Non-linearity | ≤0.018%F.S. |
| Hysteresis | ≤0.018%F.S. |
| Repeatability | ≤0.024%F.S. |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maxmum excitation Voltage | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Temp.effect on output | 0.014%F.S./10 ℃ |
| Temp.effect on zero | 0.017%F.S./10 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | ⌀5.4X3000mm |
| Weight | - |
| Material | Stainless steel/alloy steel |
3. Dimension
4. Application
50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 can be used for mechanical testing machine.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
