Product Details:
|
| Product Name: | Load Cell | Capacity: | 0.3kg, 0.5kg, 1kg, 1.5kg, 2kg, 3kg, 4kg, 5kg Or Customized |
|---|---|---|---|
| Zero Balance: | ±0.02mV/V | Sensitivity: | 1.0±10%mV/V (0.3, 0.5kg) 2.0±10%mV/V (1-5kg) |
| Material: | Aluminium Alloy | IP Class: | IP68 |
| Non-linearity: | ≤0.015%F.S. Or Customized | Maximum Excitation: | 20V |
| Recommended Excitation: | 5-15V | Safe Overload: | 150%F.S. |
| Ultimate Overload: | 200%F.S. | Cable Size: | ⌀4x3000mm Or Customized |
| High Light: | IP68 Single Point Load Cell,5kg Single Point Load Cell |
||

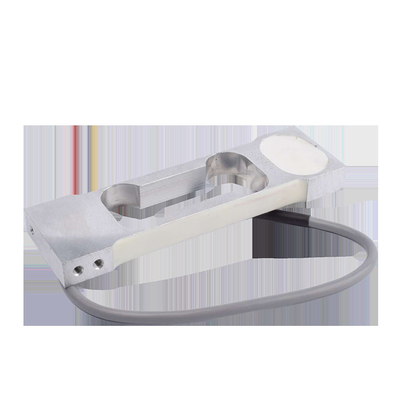

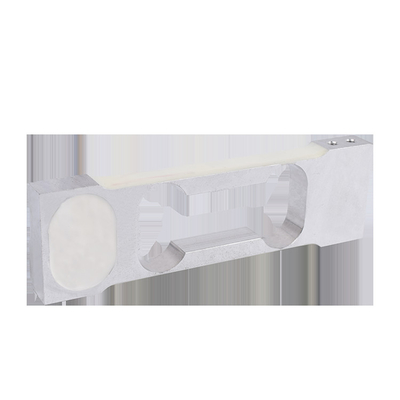

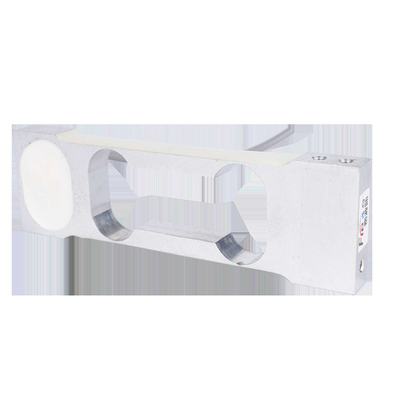

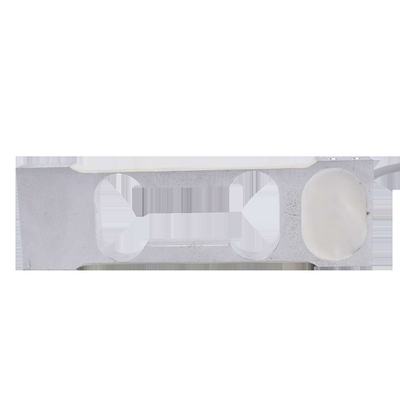

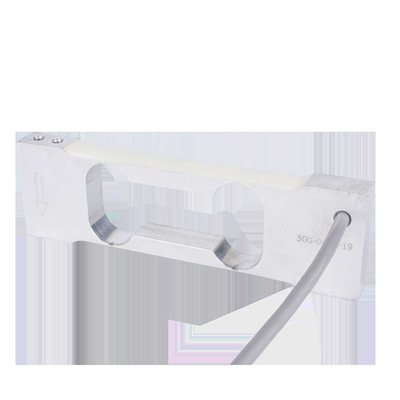

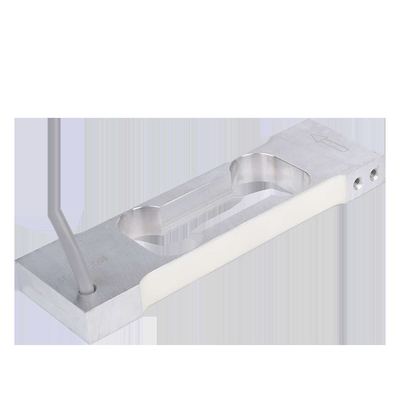

IP68 CE Certificate FA502 Stainless Steel Platform Scale Load Cell 0.3-5kg Single Point Load Cell
1. Descriptions
1.0mv/V IP68 CE Certificate FA502 Stainless Steel Platform Scale Load Cell 0.3-5kg Single Point Load Cell is a model of our brand FIBOS FA5-Series, Single Point Load Cell Tension Force Sensor FA502 can be used to measure tension force 0.3-5kg, It adopts 6-wire connection mode, which can be used for platform scale, belt scale and hopper scale, etc., and it can be customized specifications. its IP Class is IP68.
High precision, suitable for almost any tank, batching, platform scale and level monitoring applications.
Made of stainless steel, it is strong and can be used in harsh environments.
Standard size, multiple range optional.
2. Specifications
| Product name | Load Cell |
| Capacity | 0.3kg, 0.5kg, 1kg, 1.5kg, 2kg, 3kg, 4kg, 5kg or customized |
| Sensitivity | 1.0±10%mV/V (0.3, 0.5kg) 2.0±10%mV/V (1-5kg) |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.0166%F.S. or customized |
| Non-linearity | ≤0.015%F.S. or customized |
| Hysteresis | ≤0.015%F.S. or customized |
| Repeatability | ≤0.015%F.S. or customized |
| Input impedance | 380±40Ω |
| Output impedance | 380±40Ω |
| Temp.effect on output | 0.017%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -25~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm or customized |
| Weight | 0.1kg or customized |
| Material | Aluminium Alloy or customized |
3. Dimension
4. Application
1.0mv/V IP68 CE Certificate FA502 Stainless Steel Platform Scale Load Cell 0.3-5kg Single Point Load Cell, can be used for platform scale, belt scale and hopper scale, etc., and it can be customized specifications. its IP Class is IP68.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
