Product Details:
|
| Product Name: | Tensile-compressive Force Sensor | Capacity: | 100,200,300,500kg |
|---|---|---|---|
| Sensitivity: | 2.0±1%mV/V | Non-linearity: | ≤0.03%F.S. |
| Repeatability: | ≤0.02%F.S. | Material: | Alloy Steel |
| Weight: | 0.5kg | Maximun Excitation: | 20V |
| High Light: | 500kg Measuring Load Cell,S Type Force Sensor Load Cell,ISO S Beam Measuring Load Cell |
||

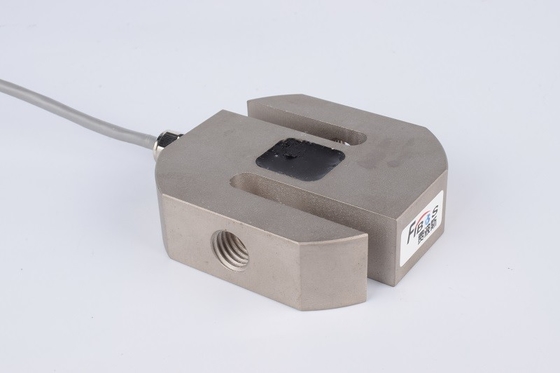

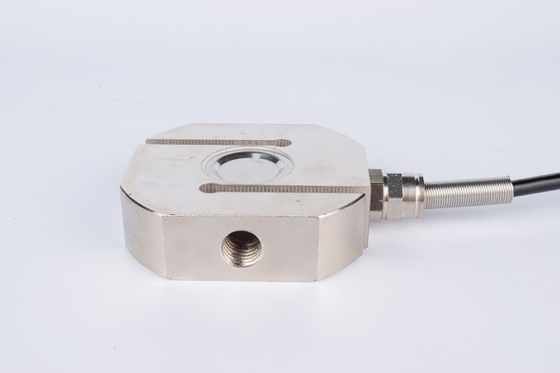

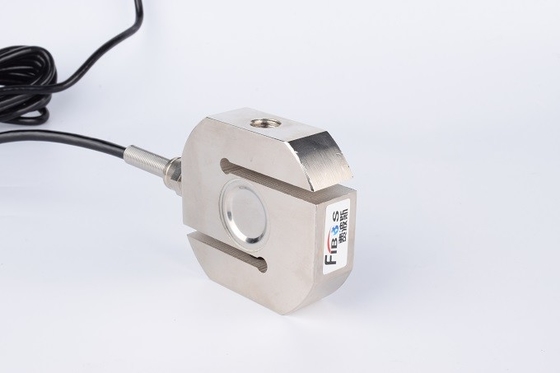

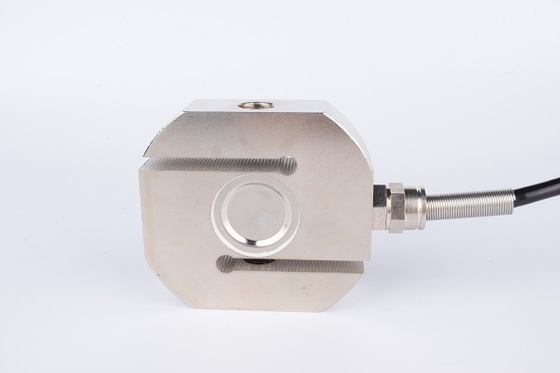

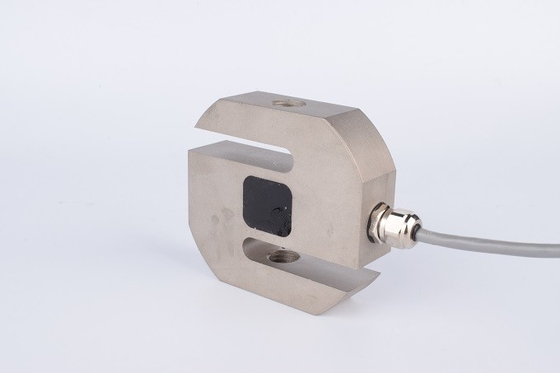

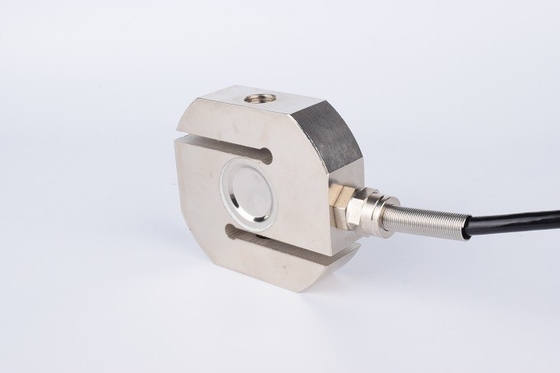

Best choice S type force sensor 100 200 300 500kg measuring load cell for powder filling machine
2. Specifications
| Product name | tensile-compressive force sensor |
| Capacity | 100,200,300,500kg |
| Sensitivity | 2.0±1%mV/V |
| Zero Balance | ±0.06mV/V |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.03%F.S. |
| Repeatability | ≤0.02%F.S. |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x3000mm |
| Weight | 0.5kg |
| Material | Alloy steel |
3. Dimension
4. Application
100-500N Alloy Steel tensile-compressive Load Cell FA308 can be used for powder filling machine.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
