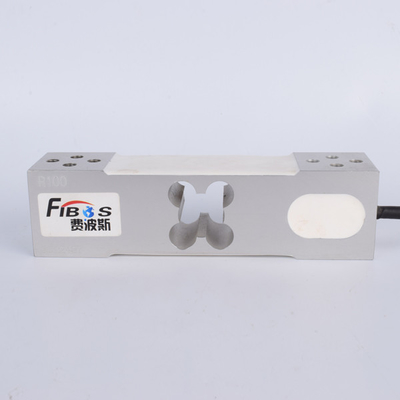

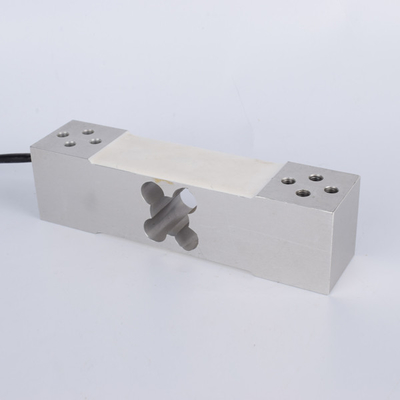

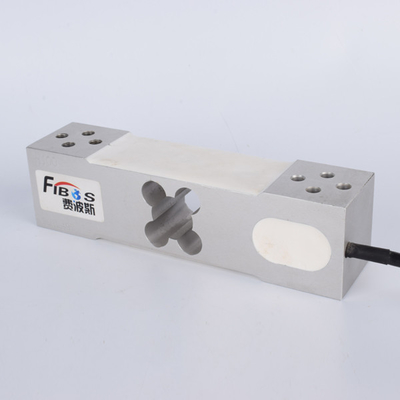

FA506 Aluminum Alloy Single Single Point Weight Sensor 50-1000kg High Precision Load Cell
1. Descriptions
50-1000kg C3 Aluninum Alloy Single Point Weight Sensor FA506 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA506 can be used to measure weight ranges from 50kg up to 1000kg capacity, its Accuracy class is high precision standard C3, its Rated output range is 2.0±20%mV/V, its Zero Balance range is ±0.1mV/V, its Creep(30min) ≤0.02%F.S., its Non-linearity and Hysteresis both ≤0.017%F.S., its Repeatability ≤0.015%F.S..
Principle of single point sensors
The elastomer (elastic element, sensitive beam) is deformed elastically by an external force, the resistance strain gauge is pasted on its surface (conversion element) and with the deformation, the resistance changes (increases or decreases) and the corresponding measuring circuit converts the change in resistance into an electrical signal (voltage or current), thus completing the conversion process of the external signal.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 50~1000kg |
| Accuracy class | C3 |
| Rated output | 2.0±20%mV/V |
| Zero Balance | ±0.1mV/V |
| Creep(30min) | ≤0.02%F.S. |
| Non-linearity | ≤0.017%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.015%F.S. |
| Input impedance | 405±15Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.0175%F.S./10 ℃ |
| Temp.effect on zero | 0.0177%F.S./10 ℃ |
| Insulation resistance | ≥2GΩ/100V(DC) |
| Recommended excitation | 1~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~50 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀6x1m |
| Weight | 0.6kg |
| Material | Aluninum alloy |
3. Dimension
They are typically used in low capacity compact weighing systems.
Single point load cells are unique in that they can accept an off-centre load, this means that they will accurately measure weight if it is placed anywhere on the scale,therefore, allowing them to be highly precise in industrial applications.
4. Application
Single point load cells are used in weight scales, bench scales, platform scales, hopper and container weighing, parts counting, packaging scales, check weighing,OEM products, retail scales, conveyor scales, production processes, low cost applications and medical scales.
