Product Details:
|
| Model:: | FA301 | Category：: | Tension/Compression Load Cells |
|---|---|---|---|
| Capacity:: | 1,2.5,5,10,20,50,100,200,300,500N | Rated Output:: | 2.0±10%mV/V |
| Material:: | Stainless Steel | Installation Dimensions:: | As Shown In The Mounting Dimension Below |
| Product Orgin:: | China | Payment:: | 100% Payment Before Shipment |
| High Light: | ROHS S Beam Load Cell,500N S Beam Load Cell,5V S Type Load Cell |
||
FEATURES

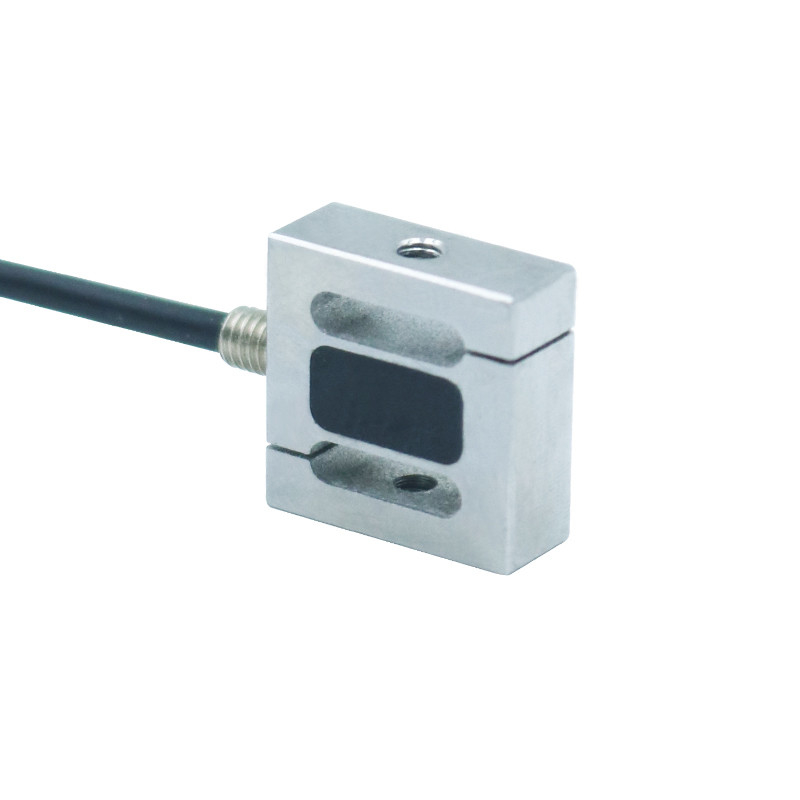

FA301 force sensor is available in ten ranges 0-1N,0-2.5N,0-5N,0-10N,0-20N,0-50N,0-100N,0-200N,0-300N,0-500N to choose from. Because of the wide range and small size of the S shaped force transducer, it can be used in many application, such as finite space and tight space locations.
1.Mini sensor 2.High precision 3.Tension and compression bidirectional
APPLICATIONS
It can be applied to:
1. Automatic equipments
2. Testing fields, such as insertion force test instruments
3. Small installation space force detection
etc...
DIMENSION
LOAD DIRECTION
WIRING CODE
SPECIFICATIONS
| Specifications | Technique |
| Capacity | 5, 10, 20, 50, 100, 200N |
| Rated Output | 2.0±10%mV/V |
| Zero Balance | ±0.02 mV/V |
| Creep (30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 650/350±5Ω |
| Output impedance | 650/350±5Ω |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operating temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ2×3000mm |
| Weight | 0.1KG |
| Material |
Stainless steel |
COMPANY PROFILE
Fibos Measurement Technology (Changzhou) Co., Ltd. is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers.
With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
PACKAGE & SHIPMENT
SUPPORT & FAQ
Q1: What is your terms of packing?
A: Generally we pack our products in neutral brown cartons.
Q2: What is your terms of payment?
A: T/T, L/C, etc.
Q3: What is your terms of delivery?
A: EXW, FOB, CFR AND CIF.
Q4: How about yout delivery time?
A: Generally it will take 10-15 days after the receipt of your down payment. The specific delivery time depends on the items and the quantity of your order.
Q5: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q6: What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers will pay for the courier cost.
Q7: How do you ensure quality of your products?
A: We have a complete quality control system, all of our products are fully checked by IQC, IPQC and OQC departments before shipping to our clients.
Q8: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it. If we can't repair it successfully, we will give you a new one. But the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
