Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 5,10,20,50,100,200N |
|---|---|---|---|
| Non-linearity: | ≤0.05%F.S. | Repeatability: | ≤0.05%F.S. |
| Material: | Stainless Steel | Application: | Large Range Weight Measurement |
| High Light: | Stainless Steel S Beam Transduce,200N S Beam Transduce,RoHS S Type Load Cell |
||
1. Descriptions

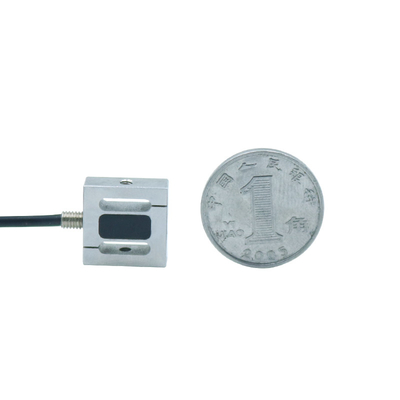

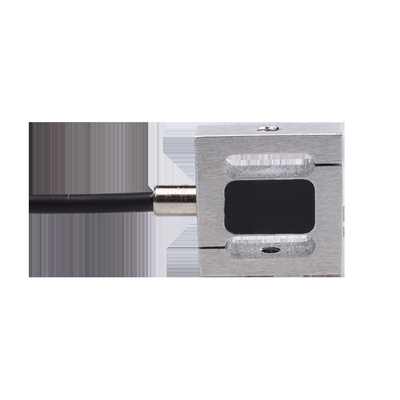

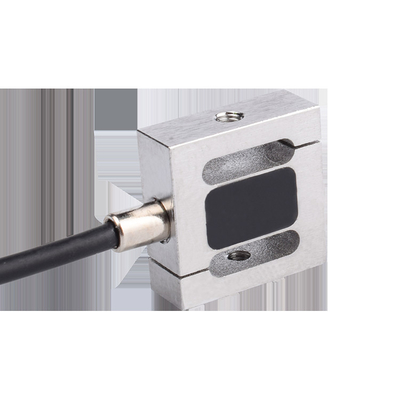

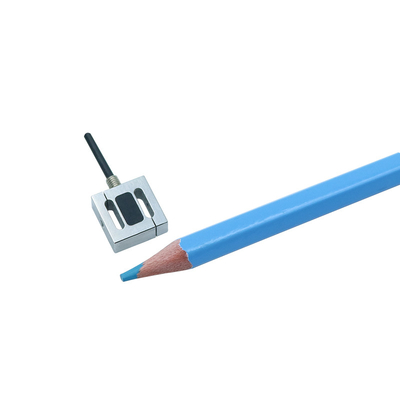

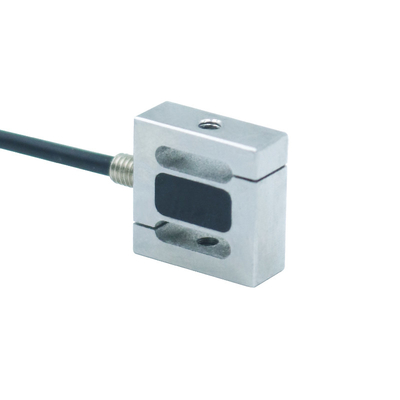

5~200N Range Weight Measurement Applied S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA301 can be used to measure load5,10,20,50,100,200N capacity, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.02mV/V.
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 5,10,20,50,100,200N |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 650/350±5Ω |
| Output impedance | 650/350±5Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maxmum excitation Voltage | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2X3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |

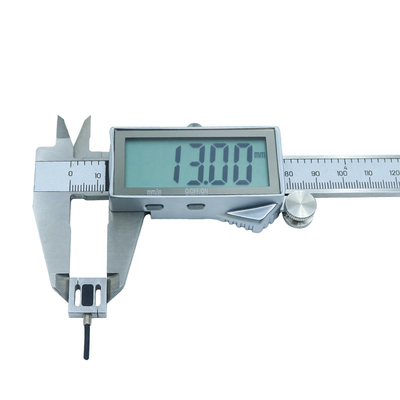

3. Dimension
4. Application
s type load cell Widely used in Push-pull force gauge, hopper scales, various industrial weighing systems, etc.;
Welding force test and tension test, automobile press-fitting, automatic assembly, 3C product testing;
New energy product assembly, medical testing, robot field, mold assembly and other industrial testing, measurement and control systems, with high dynamic response frequency.
Widely used in a variety of static and dynamic measurement applications. Its high precision makes it suitable for production process monitoring as well as for torque measurement using the lever principle in test stands.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
